Card Edge Connectors(468861)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Material | Contact Type | Number of Positions | Gender | Card Type | Number of Positions/Bay/Row | Card Thickness | Read Out | Flange Feature | Material - Insulation | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
395-022-520-107 | 13.0860 |  |
4502 | 0.00000000 | EDAC Inc. | 395 | Box | Active | -40°C ~ 105°C | Through Hole | - | 395-022 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-395-022-520-107 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 22 | Female | Non Specified - Single Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 1 | ||
 |

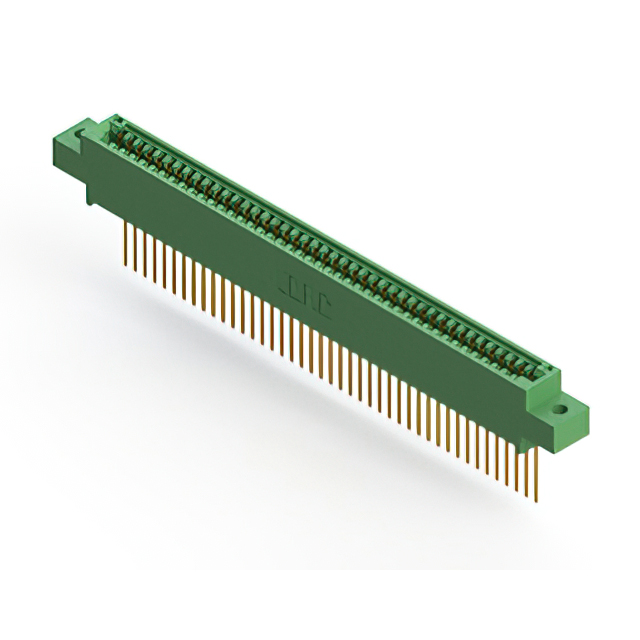

345-043-542-602 | 14.6868 | |
6512 | 0.00000000 | EDAC Inc. | 345 | Box | Active | -40°C ~ 105°C | Through Hole | - | 345-043 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-345-043-542-602 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 43 | Female | Non Specified - Single Edge | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyester Thermoplastic | 1 | ||
 |
895-034-542-604 | 58.2436 | |
2550 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 895-034 | Black | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-034-542-604 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 34 | Female | Non Specified - Single Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |

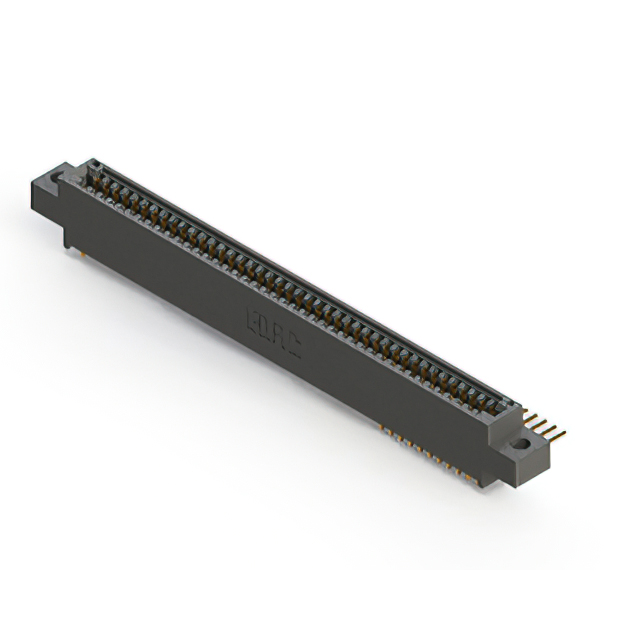

895-084-558-804 | 91.4288 | |
8818 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 895-084 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-084-558-804 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 84 | Female | Non Specified - Dual Edge | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 2 | |
 |

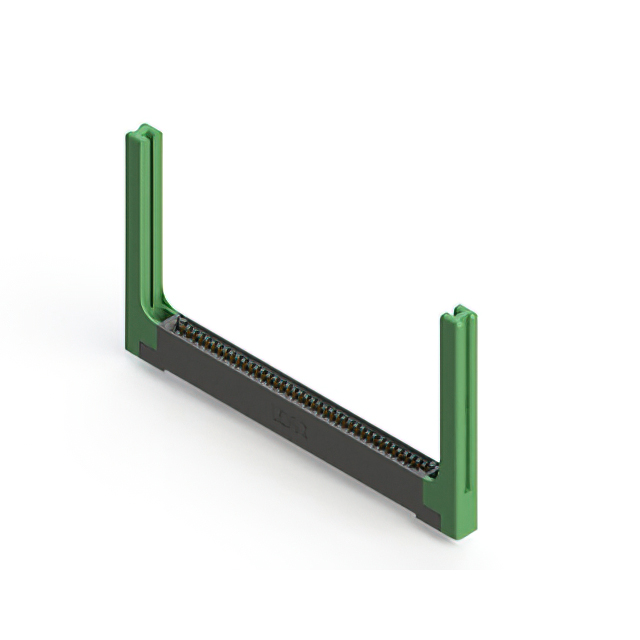

395-040-559-158 | 16.0620 | |
1441 | 0.00000000 | EDAC Inc. | 395 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | Card Guides | 395-040 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-395-040-559-158 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 40 | Female | Non Specified - Single Edge | 40 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | ||
 |

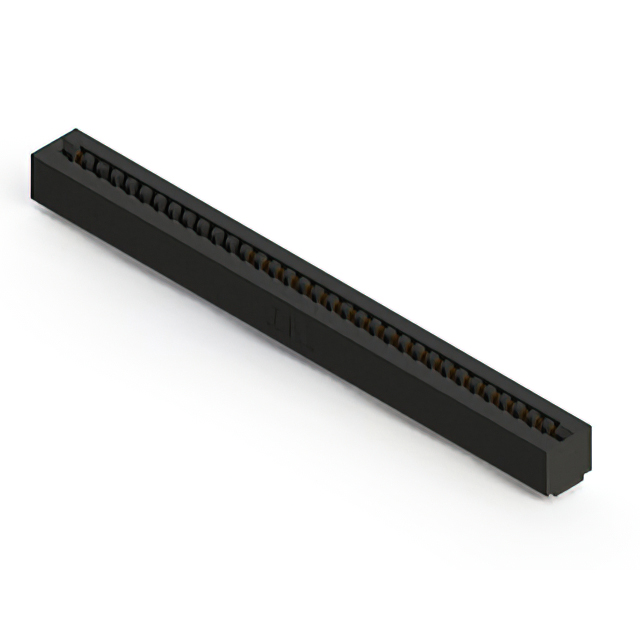

857-034-559-101 | 136.7888 | |
5530 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole, Right Angle | - | 857-034 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-034-559-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 34 | Female | Non Specified - Single Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyphenylene Sulfide (PPS) | 1 | |
 |
307-023-541-107 | 28.7252 | |
3776 | 0.00000000 | EDAC Inc. | 307 | Box | Active | -40°C ~ 105°C | Through Hole | - | 307-023 | Green | Wire Wrap | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-307-023-541-107 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 46 | Female | Non Specified - Dual Edge | 23 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 1 | |
 |

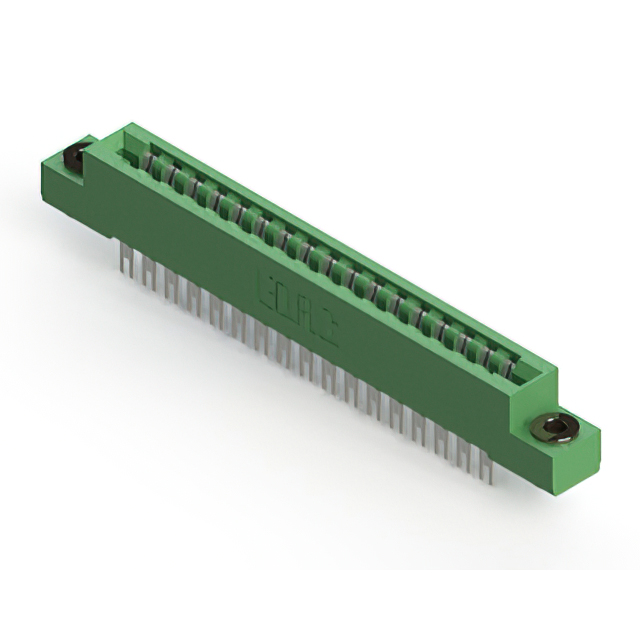

807-034-400-203 | 82.2152 | |
5109 | 0.00000000 | EDAC Inc. | 807 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 807-034 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-807-034-400-203 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Tin | - | Copper Alloy | Semi Bellows | 34 | Female | Non Specified - Dual Edge | 17 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | Diallyl Phthalate (DAP) | 2 | |
 |
837-020-540-108 | 52.5736 | |
6445 | 0.00000000 | EDAC Inc. | 837 | Box | Active | -40°C ~ 125°C | Through Hole | - | 837-020 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-837-020-540-108 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 20 | Female | Non Specified - Single Edge | 20 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Diallyl Phthalate (DAP) | 1 | ||
 |
337-034-521-168 | 13.0920 | |
3796 | 0.00000000 | EDAC Inc. | 337 | Box | Active | -40°C ~ 105°C | Through Hole | Card Guides | 337-034 | Green | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-337-034-521-168 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 34 | Female | Non Specified - Single Edge | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | |
 |
345-061-559-178 | 24.9332 | |
8386 | 0.00000000 | EDAC Inc. | 345 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | Card Guides | 345-061 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-345-061-559-178 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 61 | Female | Non Specified - Single Edge | 61 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | ||
 |
845-044-555-802 | 68.2764 | |
6797 | 0.00000000 | EDAC Inc. | 845 | Box | Active | -40°C ~ 125°C | Board Edge, Straddle Mount | Card Extender | 845-044 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-845-044-555-802 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 44 | Female | Non Specified - Dual Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 2 | ||
 |
355-044-520-578 | 12.9344 | |
8254 | 0.00000000 | EDAC Inc. | 355 | Box | Active | -40°C ~ 105°C | Panel Mount, Through Hole | - | 355-044 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-355-044-520-578 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 44 | Female | Non Specified - Dual Edge | 22 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 | ||
 |
833-040-541-608 | 75.2536 | |
6198 | 0.00000000 | EDAC Inc. | 833 | Box | Active | -40°C ~ 125°C | Through Hole | - | 833-040 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-833-040-541-608 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 40 | Female | Non Specified - Single Edge | 40 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Threaded Insert, 4-40 | Diallyl Phthalate (DAP) | 1 | ||
 |
846-049-500-102 | 92.3736 | |
8169 | 0.00000000 | EDAC Inc. | 846 | Box | Active | -40°C ~ 125°C | Through Hole | - | 846-049 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | REACH Unaffected | 151-846-049-500-102 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 49 | Female | Non Specified - Single Edge | 49 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 1 | ||
 |
346-062-556-808 | 14.1644 | |
2894 | 0.00000000 | EDAC Inc. | 346 | Box | Active | -40°C ~ 105°C | Board Edge, Straddle Mount | Card Extender | 346-062 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-346-062-556-808 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 62 | Female | Non Specified - Dual Edge | 31 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 | ||
 |
357-027-501-101 | 29.3144 | |
2174 | 0.00000000 | EDAC Inc. | 357 | Box | Active | -40°C ~ 105°C | Through Hole | - | 357-027 | Black | Solder Eyelet(s) | download | ROHS3 Compliant | REACH Unaffected | 151-357-027-501-101 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 54 | Female | Non Specified - Dual Edge | 27 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyester Thermoplastic | 1 | ||
 |
807-074-500-202 | 107.3836 | |
7136 | 0.00000000 | EDAC Inc. | 807 | Box | Active | -40°C ~ 125°C | Through Hole | - | 807-074 | Green | Solder Eyelet(s) | download | ROHS3 Compliant | REACH Unaffected | 151-807-074-500-202 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 74 | Female | Non Specified - Dual Edge | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 2 | ||
 |
887-035-523-112 | 61.2516 | |
7461 | 0.00000000 | EDAC Inc. | 887 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 887-035 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-887-035-523-112 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 35 | Female | Non Specified - Single Edge | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | Polyphenylene Sulfide (PPS) | 1 | |
 |
342-053-523-101 | 22.3620 | |
6654 | 0.00000000 | EDAC Inc. | 342 | Box | Active | -40°C ~ 105°C | Through Hole | - | 342-053 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-342-053-523-101 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 53 | Female | Non Specified - Single Edge | 53 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | - | Polyester Thermoplastic | 1 | ||
 |
392-055-521-107 | 24.3280 | |
1297 | 0.00000000 | EDAC Inc. | 392 | Box | Active | -40°C ~ 105°C | Through Hole | - | 392-055 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-392-055-521-107 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 55 | Female | Non Specified - Single Edge | 55 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 1 | ||
 |
346-032-540-608 | 10.4912 | |
6818 | 0.00000000 | EDAC Inc. | 346 | Box | Active | -40°C ~ 105°C | Through Hole | - | 346-032 | Green | Wire Wrap | download | ROHS3 Compliant | REACH Unaffected | 151-346-032-540-608 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 32 | Female | Non Specified - Single Edge | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 1 | ||
 |
895-100-540-201 | 86.3572 | |
8808 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 895-100 | Black | Wire Wrap | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-100-540-201 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 100 | Female | Non Specified - Dual Edge | 50 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | - | Polyphenylene Sulfide (PPS) | 2 | |
 |
396-050-522-807 | 12.0252 | |
3971 | 0.00000000 | EDAC Inc. | 396 | Box | Active | -40°C ~ 105°C | Through Hole | - | 396-050 | Black | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-396-050-522-807 | EAR99 | 8536.69.4040 | 25 | 0.125" (3.18mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 50 | Female | Non Specified - Dual Edge | 25 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Threaded Insert, M3 | Polyester Thermoplastic | 2 | ||
 |
845-018-524-612 | 65.2048 | |
4900 | 0.00000000 | EDAC Inc. | 845 | Box | Active | -40°C ~ 125°C | Through Hole | - | 845-018 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-845-018-524-612 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 18 | Female | Non Specified - Single Edge | 18 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | Diallyl Phthalate (DAP) | 1 | ||
 |
895-058-520-504 | 62.2664 | |
6978 | 0.00000000 | EDAC Inc. | 895 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 895-058 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-895-058-520-504 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 58 | Female | Non Specified - Dual Edge | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyphenylene Sulfide (PPS) | 2 | |
 |
337-018-520-604 | 6.6944 | |
4437 | 0.00000000 | EDAC Inc. | 337 | Box | Active | -40°C ~ 105°C | Through Hole | - | 337-018 | Green | Solder | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-337-018-520-604 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 1 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 18 | Female | Non Specified - Single Edge | 18 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Single | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | Polyester Thermoplastic | 1 | |
 |
342-034-558-207 | 14.0552 | |
9220 | 0.00000000 | EDAC Inc. | 342 | Box | Active | -40°C ~ 105°C | Through Hole, Right Angle | - | 342-034 | Green | Solder, Wire Wrap | download | ROHS3 Compliant | Not Applicable | REACH Unaffected | 151-342-034-558-207 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 34 | Female | Non Specified - Dual Edge | 17 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, M3 | Polyester Thermoplastic | 2 | |
 |
857-016-522-208 | 76.4772 | |
9922 | 0.00000000 | EDAC Inc. | 857 | Bulk | Active | -40°C ~ 125°C | Through Hole | - | 857-016 | Black | Solder | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-857-016-522-208 | EAR99 | 8536.69.4040 | 25 | 0.156" (3.96mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Semi Bellows | 16 | Female | Non Specified - Dual Edge | 8 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Flush Mount, Top Opening, Threaded Insert, 4-40 | Polyphenylene Sulfide (PPS) | 2 | |
 |
345-062-524-888 | 13.9284 | |
1106 | 0.00000000 | EDAC Inc. | 345 | Box | Active | -40°C ~ 105°C | Through Hole | Card Guides | 345-062 | Green | Solder | download | ROHS3 Compliant | REACH Unaffected | 151-345-062-524-888 | EAR99 | 8536.69.4040 | 25 | 0.100" (2.54mm) | 2 | Gold | 10.0µin (0.25µm) | Copper Alloy | Cantilever | 62 | Female | Non Specified - Dual Edge | 31 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | Dual | Top Mount Opening, Threaded Insert, 4-40 | Polyester Thermoplastic | 2 |
