Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

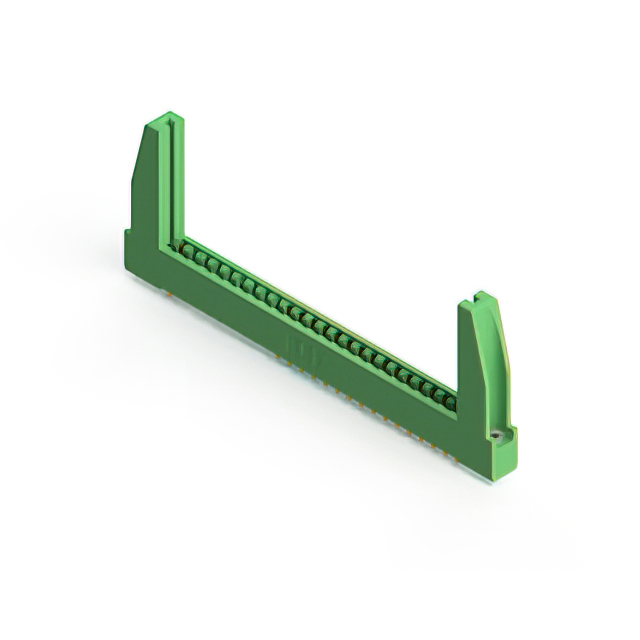

307-050-540-278 EDAC Inc. 307-050-540-278 14.9428
RFQ
 ECAD 6979 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole Card Guides 307-050 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-050-540-278 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
346-043-541-104 EDAC Inc. 346-043-541-104 9.0596
RFQ
 ECAD 6332 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-043 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-043-541-104 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
392-053-559-107 EDAC Inc. 392-053-559-107 25.8308
RFQ
 ECAD 3186 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole, Right Angle - 392-053 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-053-559-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 53 Female Non Specified - Single Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
333-080-523-803 EDAC Inc. 333-080-523-803 13.6828
RFQ
 ECAD 3392 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-080 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-080-523-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
842-036-520-102 EDAC Inc. 842-036-520-102 115.8884
RFQ
 ECAD 2090 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-036 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-036-520-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1

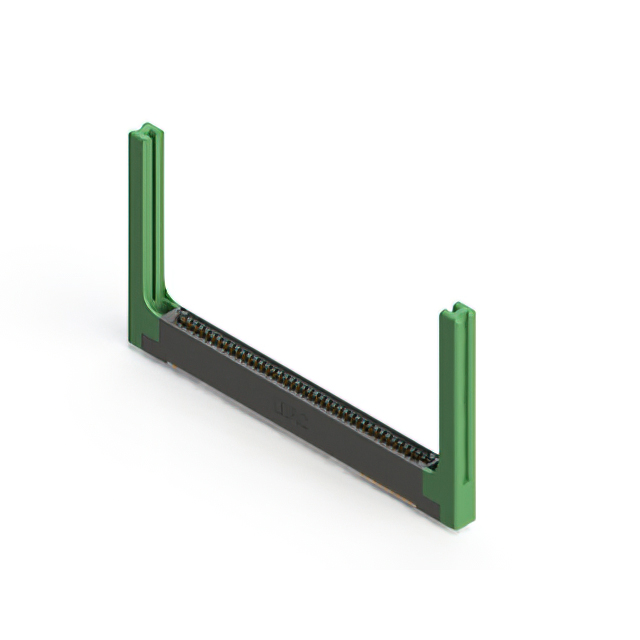

395-082-559-258 EDAC Inc. 395-082-559-258 17.4052
RFQ
 ECAD 7989 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 395-082 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-082-559-258 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
337-040-558-104 EDAC Inc. 337-040-558-104 13.1908
RFQ
 ECAD 5744 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole, Right Angle - 337-040 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-040-558-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Single Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
345-108-544-504 EDAC Inc. 345-108-544-504 17.0984
RFQ
 ECAD 3673 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-108 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-108-544-504 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 108 Female Non Specified - Dual Edge 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
391-110-556-202 EDAC Inc. 391-110-556-202 21.4472
RFQ
 ECAD 7760 0.00000000 EDAC Inc. 391 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 391-110 Black Solder download ROHS3 Compliant REACH Unaffected 151-391-110-556-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 110 Female Non Specified - Dual Edge 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
346-098-558-812 EDAC Inc. 346-098-558-812 17.0004
RFQ
 ECAD 9044 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-098 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-098-558-812 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
833-020-523-804 EDAC Inc. 833-020-523-804 31.6224
RFQ
 ECAD 5170 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-020 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-020-523-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Dual Edge 10 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
395-016-559-588 EDAC Inc. 395-016-559-588 12.9912
RFQ
 ECAD 8308 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 395-016 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-016-559-588 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

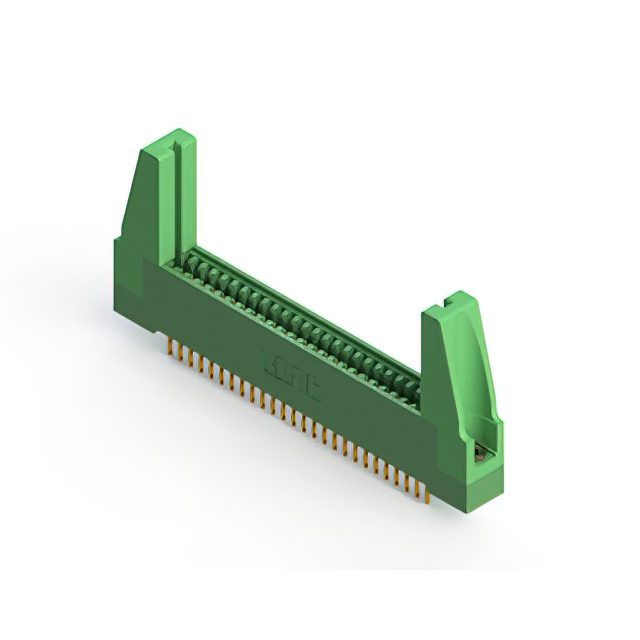

345-026-558-188 EDAC Inc. 345-026-558-188 15.1420
RFQ
 ECAD 6704 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 345-026 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-026-558-188 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Single Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
895-128-540-507 EDAC Inc. 895-128-540-507 120.1408
RFQ
 ECAD 6606 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-128 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-128-540-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 128 Female Non Specified - Dual Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
895-060-559-608 EDAC Inc. 895-060-559-608 143.9360
RFQ
 ECAD 5931 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-060 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-060-559-608 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Single Edge 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1

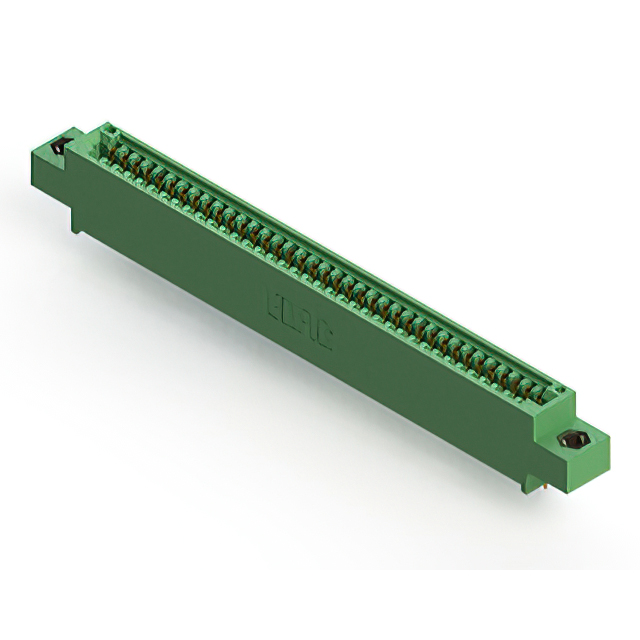

345-037-524-607 EDAC Inc. 345-037-524-607 14.4704
RFQ
 ECAD 1359 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-037 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-037-524-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 37 Female Non Specified - Single Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1

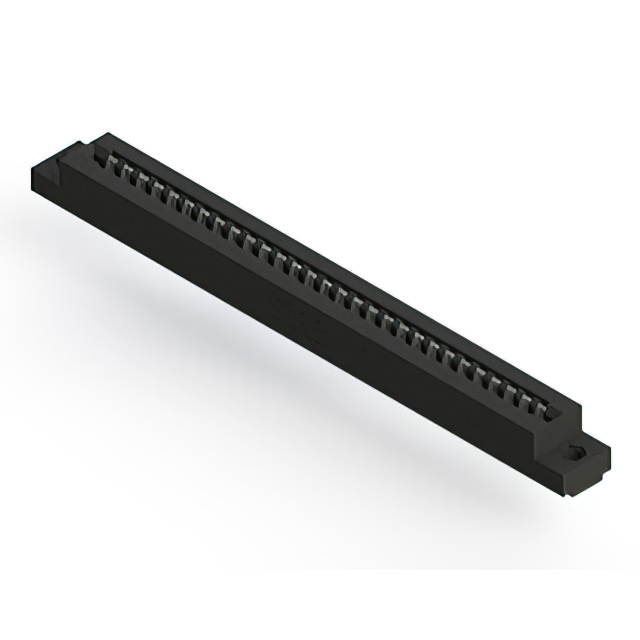

857-029-431-104 EDAC Inc. 857-029-431-104 102.4896
RFQ
 ECAD 7590 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-029 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-029-431-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1

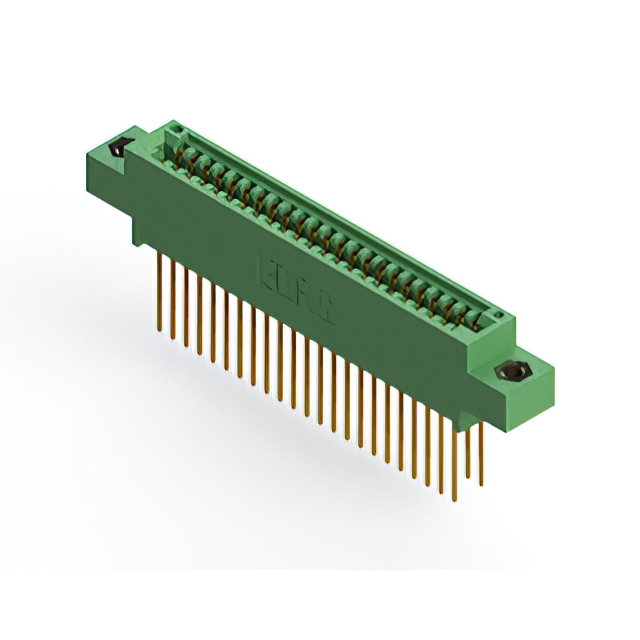

845-046-540-807 EDAC Inc. 845-046-540-807 74.5448
RFQ
 ECAD 3307 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-046 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-046-540-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2

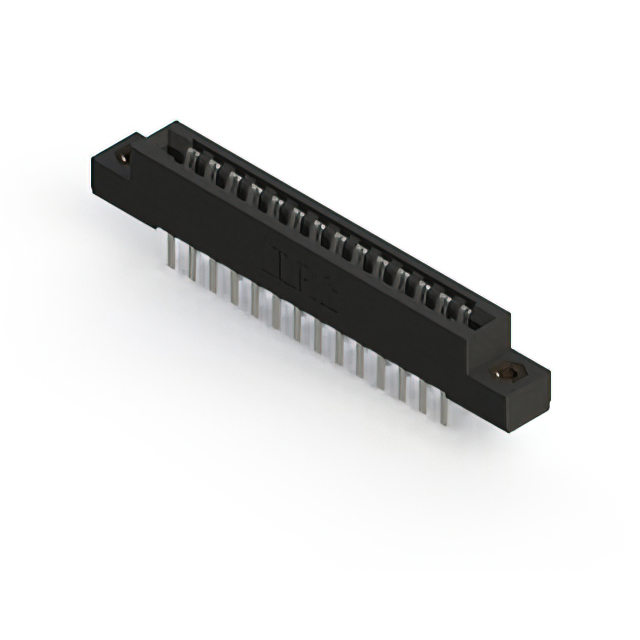

357-028-440-207 EDAC Inc. 357-028-440-207 14.2284
RFQ
 ECAD 4914 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole - 357-028 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-028-440-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
845-104-542-204 EDAC Inc. 845-104-542-204 87.3024
RFQ
 ECAD 9573 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-104 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-104-542-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 104 Female Non Specified - Dual Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
345-086-540-803 EDAC Inc. 345-086-540-803 15.2328
RFQ
 ECAD 6588 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-086 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-086-540-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
845-128-556-808 EDAC Inc. 845-128-556-808 135.2608
RFQ
 ECAD 9824 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-128 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-128-556-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 128 Female Non Specified - Dual Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

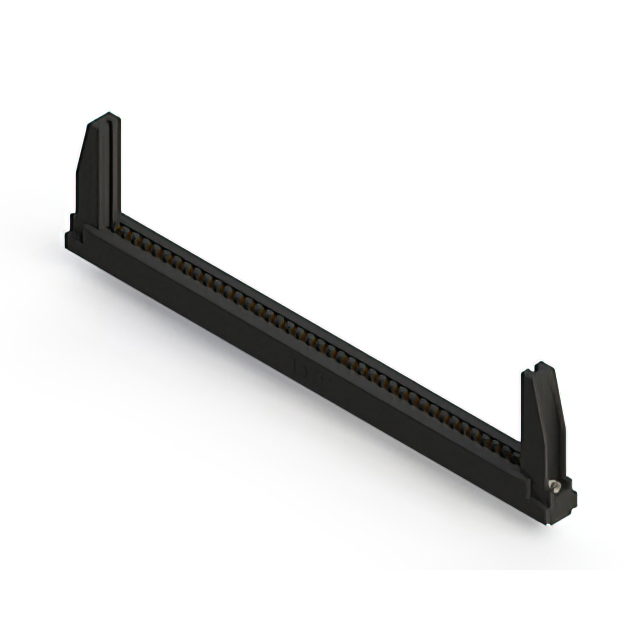

357-041-531-178 EDAC Inc. 357-041-531-178 23.2320
RFQ
 ECAD 8806 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole Card Guides 357-041 Black Solder download ROHS3 Compliant REACH Unaffected 151-357-041-531-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 41 Female Non Specified - Single Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
395-065-540-108 EDAC Inc. 395-065-540-108 16.4064
RFQ
 ECAD 9476 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-065 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-065-540-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 65 Female Non Specified - Single Edge 65 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
341-029-522-101 EDAC Inc. 341-029-522-101 14.2000
RFQ
 ECAD 9087 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-029 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-029-522-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

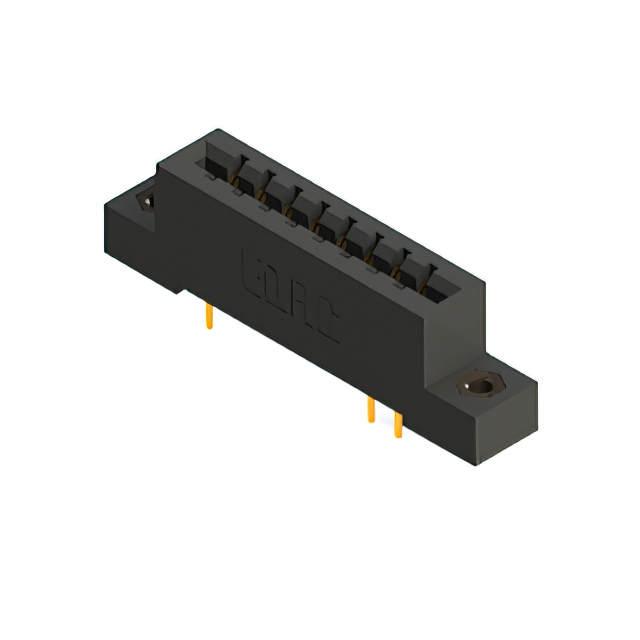

887-016-523-207 EDAC Inc. 887-016-523-207 64.7324
RFQ
 ECAD 1232 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-016 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-016-523-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2

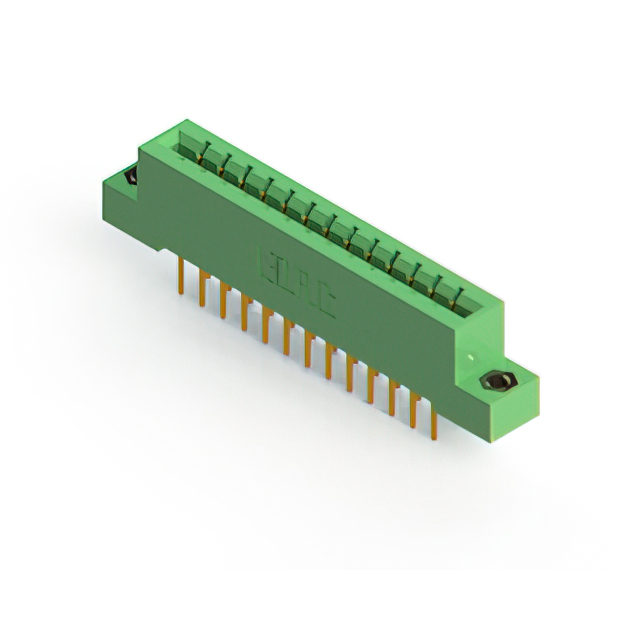

333-026-542-207 EDAC Inc. 333-026-542-207 9.1320
RFQ
 ECAD 8016 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-026 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-026-542-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
337-014-520-808 EDAC Inc. 337-014-520-808 11.2416
RFQ
 ECAD 3728 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-014 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-014-520-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Dual Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
846-056-556-808 EDAC Inc. 846-056-556-808 88.5936
RFQ
 ECAD 4315 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 846-056 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-056-556-808 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
846-020-522-678 EDAC Inc. 846-020-522-678 -
RFQ
 ECAD 6457 0.00000000 EDAC Inc. 846 Box Obsolete -40°C ~ 125°C Through Hole Card Guides 846-020 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-020-522-678 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold - Copper Alloy - 20 Female Non Specified - Single Edge 20 0.062" (1.57mm) Single Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP)
