Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
725-136-540-201 EDAC Inc. 725-136-540-201 17.4244
RFQ
 ECAD 9025 0.00000000 EDAC Inc. 725 Box Active -40°C ~ 105°C Through Hole - 725-136 Black Press-Fit, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-725-136-540-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 136 Female Non Specified - Dual Edge 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2

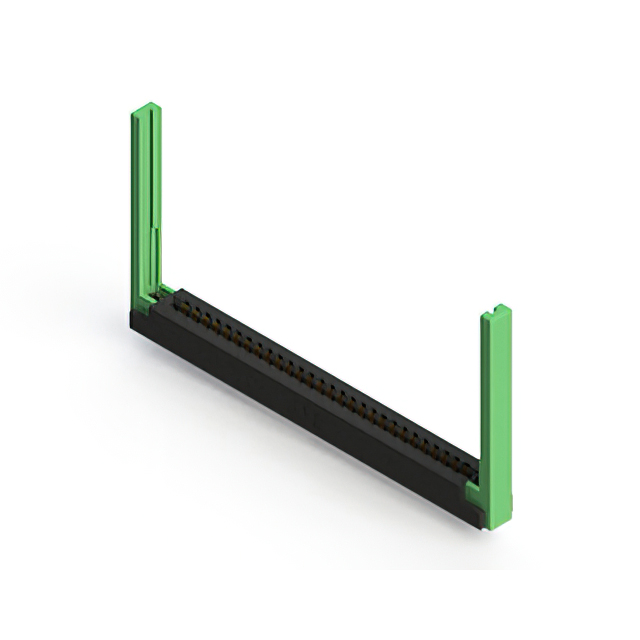

355-056-521-568 EDAC Inc. 355-056-521-568 14.4956
RFQ
 ECAD 1064 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 355-056 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-056-521-568 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
325-072-500-201 EDAC Inc. 325-072-500-201 14.4356
RFQ
 ECAD 1360 0.00000000 EDAC Inc. 325 Box Active -65°C ~ 125°C Through Hole - 325-072 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-325-072-500-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.125" (3.18mm) Dual - Diallyl Phthalate (DAP) 2
315-086-521-201 EDAC Inc. 315-086-521-201 15.1600
RFQ
 ECAD 3770 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Through Hole - 315-086 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-086-521-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
307-027-547-107 EDAC Inc. 307-027-547-107 16.6656
RFQ
 ECAD 2487 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-027 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-027-547-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
345-007-520-104 EDAC Inc. 345-007-520-104 5.6612
RFQ
 ECAD 3985 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-007 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-007-520-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
892-030-523-104 EDAC Inc. 892-030-523-104 98.8536
RFQ
 ECAD 8057 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-030 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-030-523-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
345-007-542-658 EDAC Inc. 345-007-542-658 9.2956
RFQ
 ECAD 9054 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-007 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-007-542-658 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
387-023-558-101 EDAC Inc. 387-023-558-101 10.4976
RFQ
 ECAD 4751 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-023 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-023-558-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
357-033-554-158 EDAC Inc. 357-033-554-158 38.2608
RFQ
 ECAD 6013 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Surface Mount Card Guides 357-033 Black Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-357-033-554-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
842-044-544-204 EDAC Inc. 842-044-544-204 63.0788
RFQ
 ECAD 4244 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-044 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-044-544-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 44 Female Non Specified - Dual Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
345-066-525-803 EDAC Inc. 345-066-525-803 13.1364
RFQ
 ECAD 5176 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-066 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-066-525-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Dual Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

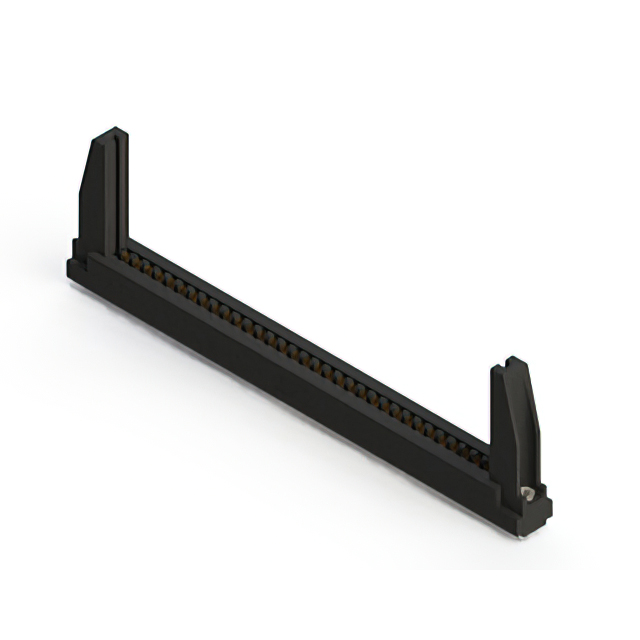

357-034-557-178 EDAC Inc. 357-034-557-178 40.3192
RFQ
 ECAD 1138 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 357-034 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-357-034-557-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
887-032-500-112 EDAC Inc. 887-032-500-112 144.0488
RFQ
 ECAD 3189 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-032 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-032-500-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
837-074-520-268 EDAC Inc. 837-074-520-268 -
RFQ
 ECAD 3043 0.00000000 EDAC Inc. 837 Box Obsolete 837-074 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-837-074-520-268 EAR99 8536.69.4040 25
356-039-400-168 EDAC Inc. 356-039-400-168 23.1536
RFQ
 ECAD 5504 0.00000000 EDAC Inc. 356 Bulk Active -40°C ~ 105°C Panel Mount Card Guides 356-039 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-356-039-400-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Cantilever 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
345-058-524-488 EDAC Inc. 345-058-524-488 20.9948
RFQ
 ECAD 5304 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-058 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-058-524-488 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 58 Female Non Specified - Single Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
846-024-500-203 EDAC Inc. 846-024-500-203 78.5608
RFQ
 ECAD 6421 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-024 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-846-024-500-203 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
307-035-527-107 EDAC Inc. 307-035-527-107 20.3436
RFQ
 ECAD 7809 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Through Hole - 307-035 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-035-527-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
895-060-521-604 EDAC Inc. 895-060-521-604 130.2996
RFQ
 ECAD 4215 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-060 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-060-521-604 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Single Edge 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
845-046-521-102 EDAC Inc. 845-046-521-102 85.1760
RFQ
 ECAD 2092 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-046 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-046-521-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Single Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
846-068-522-204 EDAC Inc. 846-068-522-204 61.4248
RFQ
 ECAD 5163 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-068 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-068-522-204 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 68 Female Non Specified - Dual Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
895-008-559-107 EDAC Inc. 895-008-559-107 64.5392
RFQ
 ECAD 4464 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-008 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-008-559-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 8 Female Non Specified - Single Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
337-070-541-812 EDAC Inc. 337-070-541-812 15.4680
RFQ
 ECAD 3806 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-070 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-070-541-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
857-012-420-204 EDAC Inc. 857-012-420-204 32.1712
RFQ
 ECAD 5312 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-012 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-012-420-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
355-042-555-212 EDAC Inc. 355-042-555-212 13.3132
RFQ
 ECAD 5980 0.00000000 EDAC Inc. 355 Bulk Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-355-042-555-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
857-015-501-107 EDAC Inc. 857-015-501-107 142.2224
RFQ
 ECAD 8441 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Through Hole - 857-015 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-015-501-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
341-016-522-107 EDAC Inc. 341-016-522-107 10.1980
RFQ
 ECAD 2845 0.00000000 EDAC Inc. 341 Box Active -40°C ~ 105°C Through Hole - 341-016 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-341-016-522-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
845-030-540-207 EDAC Inc. 845-030-540-207 61.3148
RFQ
 ECAD 9648 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-030 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-030-540-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
807-022-458-107 EDAC Inc. 807-022-458-107 107.6104
RFQ
 ECAD 7333 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 807-022 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-022-458-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
