Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows

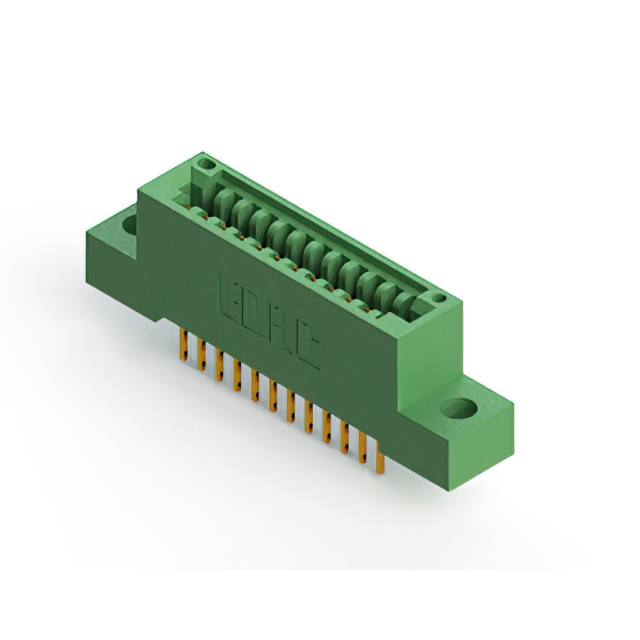

345-012-558-104 EDAC Inc. 345-012-558-104 10.0208
RFQ
 ECAD 5187 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle - 345-012 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-012-558-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
337-027-523-112 EDAC Inc. 337-027-523-112 10.0328
RFQ
 ECAD 3293 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-027 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-027-523-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 27 Female Non Specified - Single Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
333-074-524-201 EDAC Inc. 333-074-524-201 10.4148
RFQ
 ECAD 6113 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-074 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-074-524-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
391-072-556-207 EDAC Inc. 391-072-556-207 18.8016
RFQ
 ECAD 4981 0.00000000 EDAC Inc. 391 Box Active -40°C ~ 105°C Through Hole Card Extender 391-072 Black Solder download ROHS3 Compliant REACH Unaffected 151-391-072-556-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
346-076-541-803 EDAC Inc. 346-076-541-803 13.2064
RFQ
 ECAD 3634 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-076 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-076-541-803 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

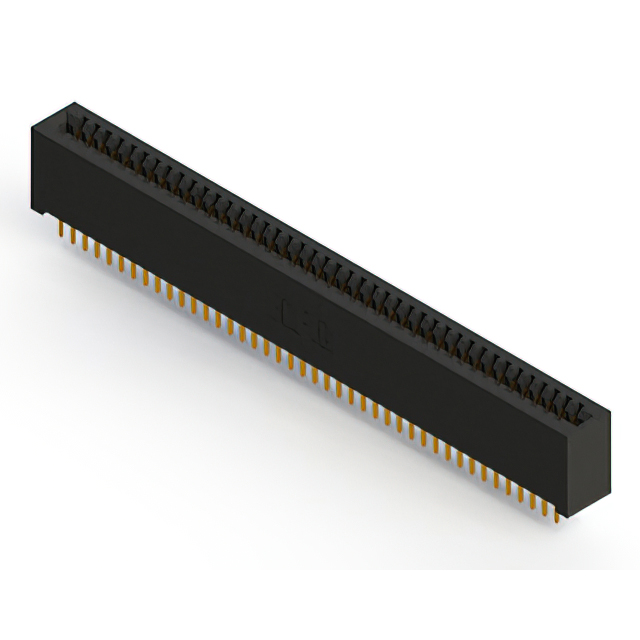

392-084-521-201 EDAC Inc. 392-084-521-201 14.1472
RFQ
 ECAD 6896 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-084 Black Solder download ROHS3 Compliant REACH Unaffected 151-392-084-521-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2

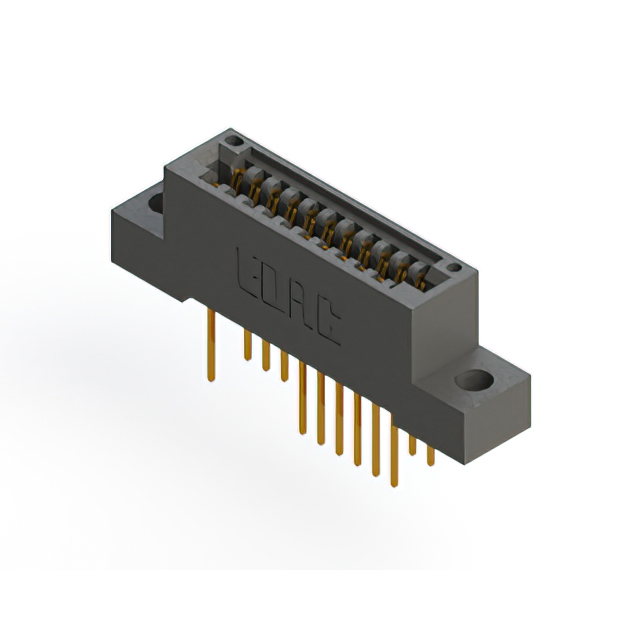

395-022-523-204 EDAC Inc. 395-022-523-204 7.2676
RFQ
 ECAD 3487 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-022 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-022-523-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2

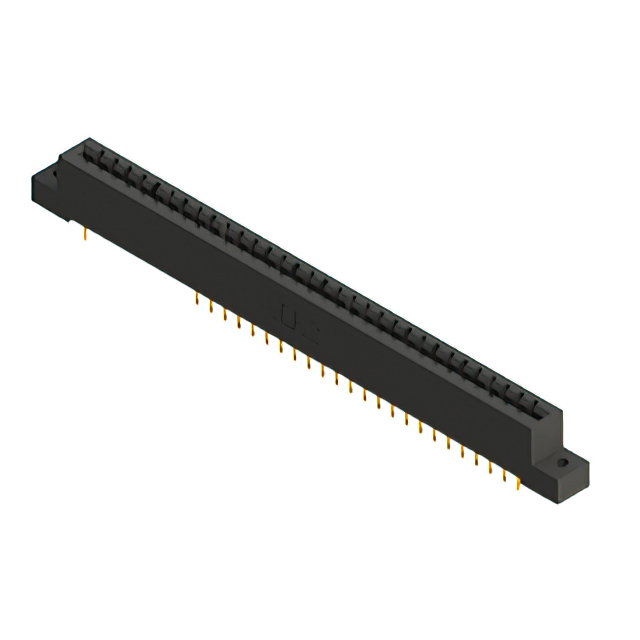

387-032-558-102 EDAC Inc. 387-032-558-102 12.0064
RFQ
 ECAD 2794 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-032 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-032-558-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Single Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
392-040-544-207 EDAC Inc. 392-040-544-207 12.7260
RFQ
 ECAD 7299 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-040 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-040-544-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 40 Female Non Specified - Dual Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

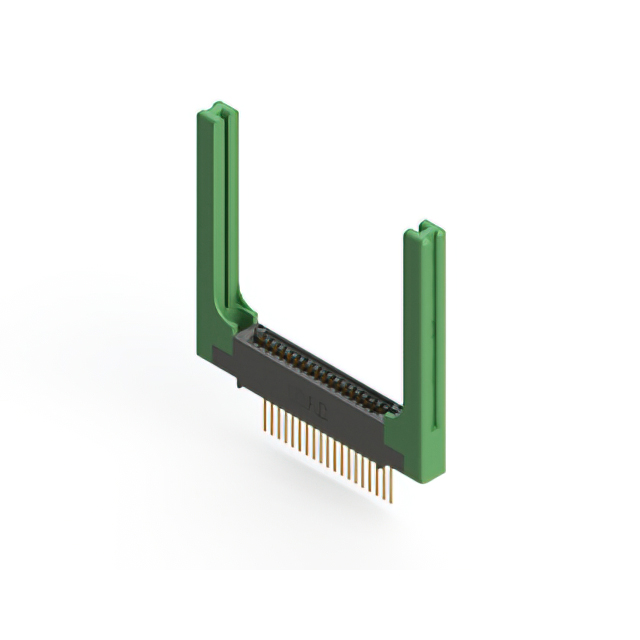

395-019-542-458 EDAC Inc. 395-019-542-458 13.5780
RFQ
 ECAD 7837 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-019 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-019-542-458 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 19 Female Non Specified - Single Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-042-541-878 EDAC Inc. 845-042-541-878 -
RFQ
 ECAD 3353 0.00000000 EDAC Inc. 845 Box Obsolete 845-042 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-042-541-878 EAR99 8536.69.4040 25
807-014-524-268 EDAC Inc. 807-014-524-268 -
RFQ
 ECAD 6644 0.00000000 EDAC Inc. 807 Box Obsolete 807-014 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-014-524-268 EAR99 8536.69.4040 25
346-034-522-604 EDAC Inc. 346-034-522-604 8.3112
RFQ
 ECAD 2261 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-034 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-034-522-604 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Single Edge 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

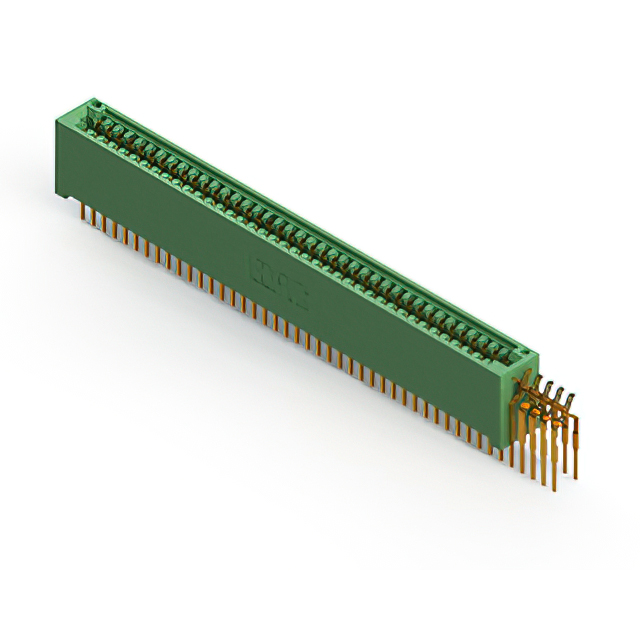

845-090-540-201 EDAC Inc. 845-090-540-201 80.4512
RFQ
 ECAD 1347 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-090 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-090-540-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 90 Female Non Specified - Dual Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2

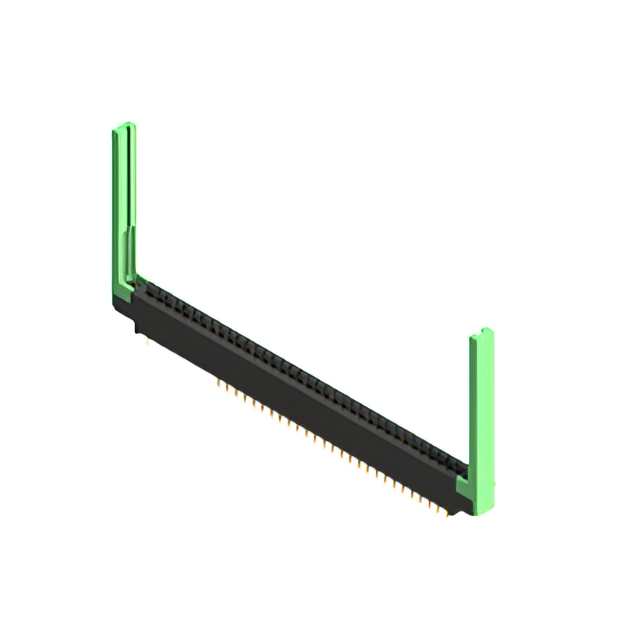

387-070-559-868 EDAC Inc. 387-070-559-868 24.4060
RFQ
 ECAD 9307 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-070 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-070-559-868 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
387-070-523-804 EDAC Inc. 387-070-523-804 19.3028
RFQ
 ECAD 8577 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-070 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-070-523-804 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Dual Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
315-080-520-202 EDAC Inc. 315-080-520-202 14.5988
RFQ
 ECAD 6025 0.00000000 EDAC Inc. 315 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 315-080 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-315-080-520-202 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

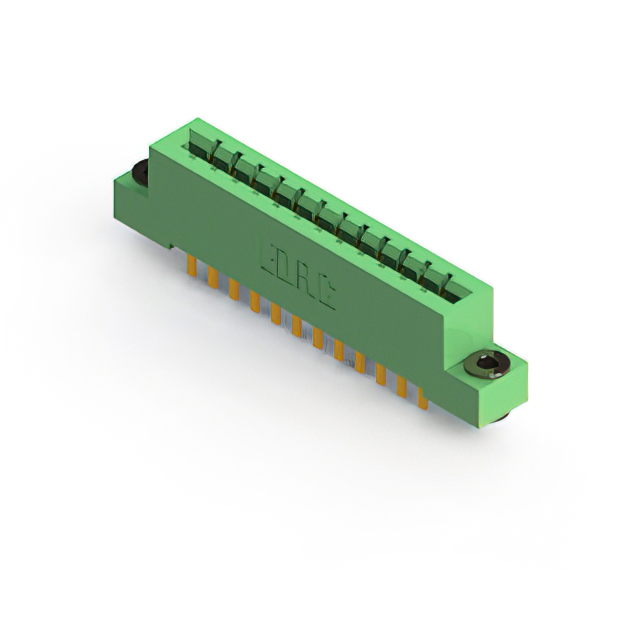

833-024-544-203 EDAC Inc. 833-024-544-203 48.5572
RFQ
 ECAD 6729 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-024 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-024-544-203 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
345-061-544-404 EDAC Inc. 345-061-544-404 19.6112
RFQ
 ECAD 3444 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-061 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-061-544-404 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 61 Female Non Specified - Single Edge 61 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

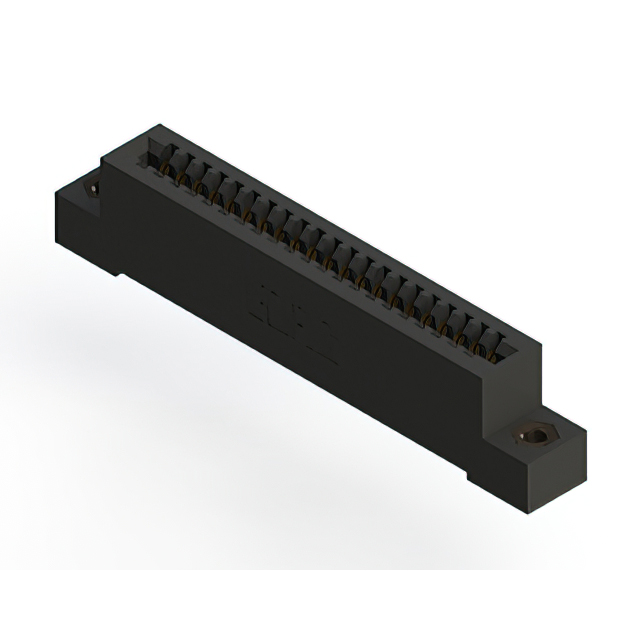

392-021-521-107 EDAC Inc. 392-021-521-107 15.4536
RFQ
 ECAD 3674 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-021 Black Solder download ROHS3 Compliant REACH Unaffected 151-392-021-521-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
357-030-520-208 EDAC Inc. 357-030-520-208 11.0404
RFQ
 ECAD 4072 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole - 357-030 Black Solder download ROHS3 Compliant REACH Unaffected 151-357-030-520-208 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
342-043-523-108 EDAC Inc. 342-043-523-108 21.4668
RFQ
 ECAD 1581 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-043 Green Solder download ROHS3 Compliant REACH Unaffected 151-342-043-523-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 43 Female Non Specified - Single Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
845-084-542-507 EDAC Inc. 845-084-542-507 92.0272
RFQ
 ECAD 6728 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-084 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-845-084-542-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2
392-048-542-101 EDAC Inc. 392-048-542-101 19.9756
RFQ
 ECAD 2318 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-048 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-048-542-101 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Single Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1

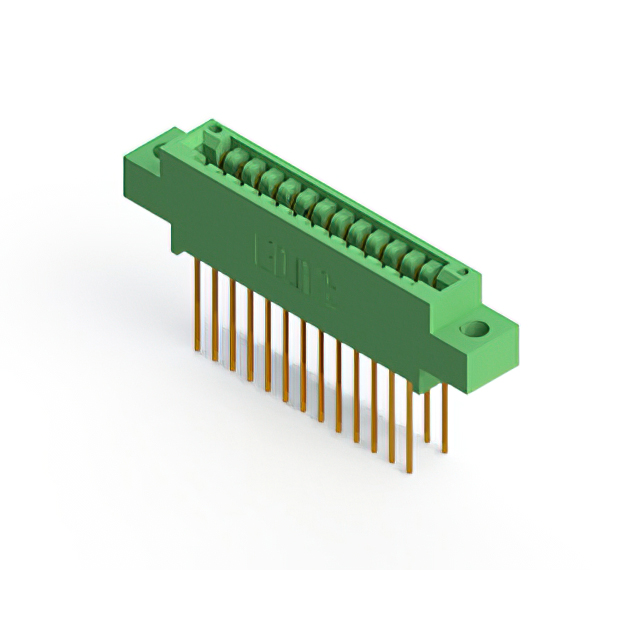

346-026-541-804 EDAC Inc. 346-026-541-804 7.3464
RFQ
 ECAD 3677 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-026 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-026-541-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
746-106-525-606 EDAC Inc. 746-106-525-606 13.7656
RFQ
 ECAD 8280 0.00000000 EDAC Inc. 746 Box Active -40°C ~ 105°C Through Hole - 746-106 Black Press-Fit download ROHS3 Compliant REACH Unaffected 151-746-106-525-606 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 106 Female Non Specified - Dual Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
845-082-520-807 EDAC Inc. 845-082-520-807 90.4836
RFQ
 ECAD 5379 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-082 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-082-520-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 2

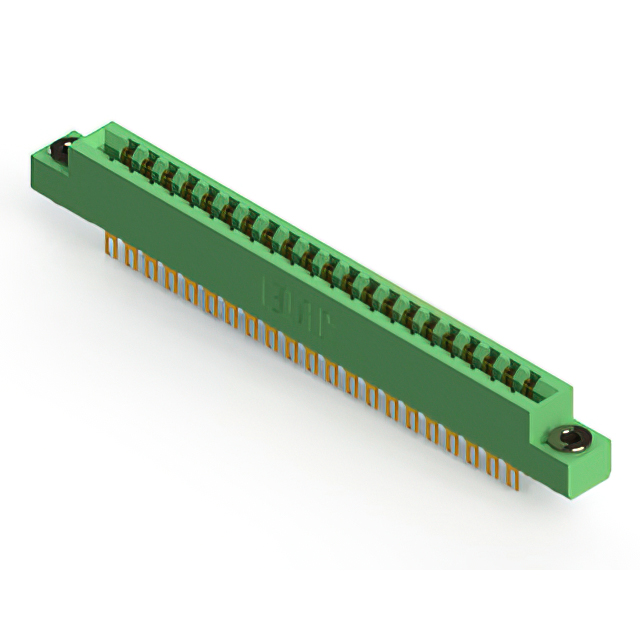

305-042-500-503 EDAC Inc. 305-042-500-503 12.0880
RFQ
 ECAD 6558 0.00000000 EDAC Inc. 305 Box Active -40°C ~ 105°C Panel Mount - 305-042 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-042-500-503 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2

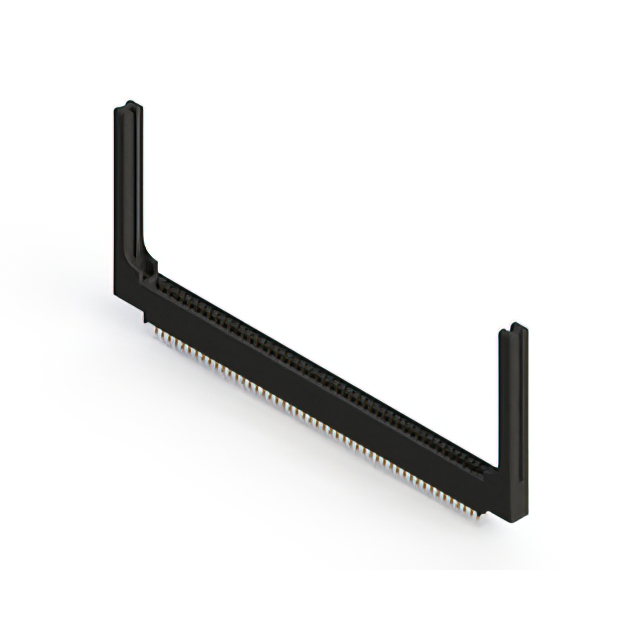

396-098-556-858 EDAC Inc. 396-098-556-858 17.9408
RFQ
 ECAD 3097 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 396-098 Black Solder download ROHS3 Compliant REACH Unaffected 151-396-098-556-858 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 98 Female Non Specified - Dual Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
845-050-524-503 EDAC Inc. 845-050-524-503 71.8200
RFQ
 ECAD 3951 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-050 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-050-524-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 50 Female Non Specified - Dual Edge 25 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
