Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
845-046-525-203 EDAC Inc. 845-046-525-203 71.7048
RFQ
 ECAD 2006 0.00000000 EDAC Inc. 845 Bulk Active -40°C ~ 125°C Through Hole - 845-046 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-046-525-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Dual Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2
345-064-525-502 EDAC Inc. 345-064-525-502 11.9504
RFQ
 ECAD 1600 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-064 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-064-525-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Dual Edge 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

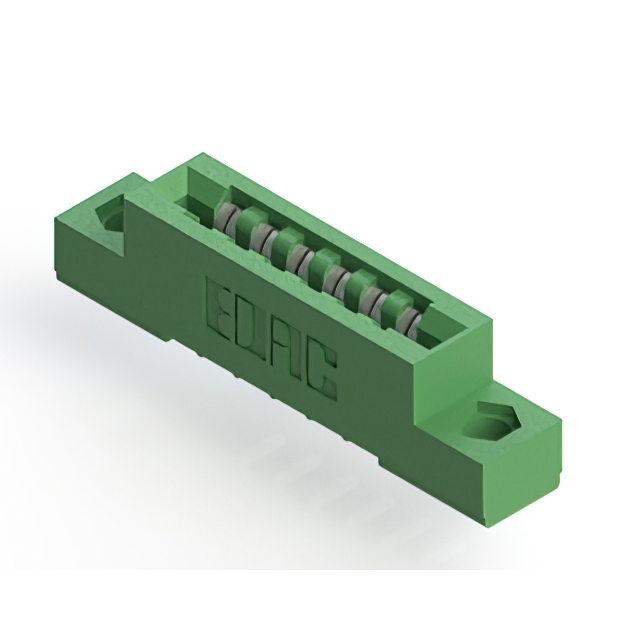

307-006-453-104 EDAC Inc. 307-006-453-104 14.7072
RFQ
 ECAD 3892 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole, Right Angle - 307-006 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-006-453-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1

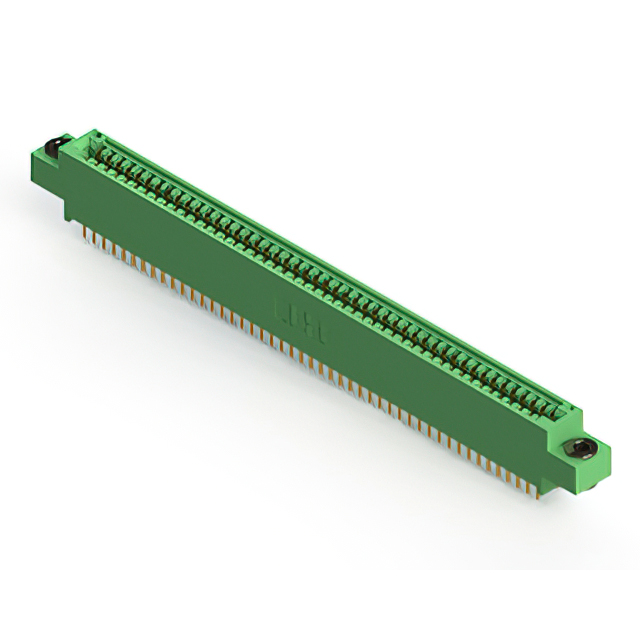

845-094-525-803 EDAC Inc. 845-094-525-803 94.7632
RFQ
 ECAD 8772 0.00000000 EDAC Inc. 845 Bulk Active -40°C ~ 125°C Through Hole - 845-094 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-094-525-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 2

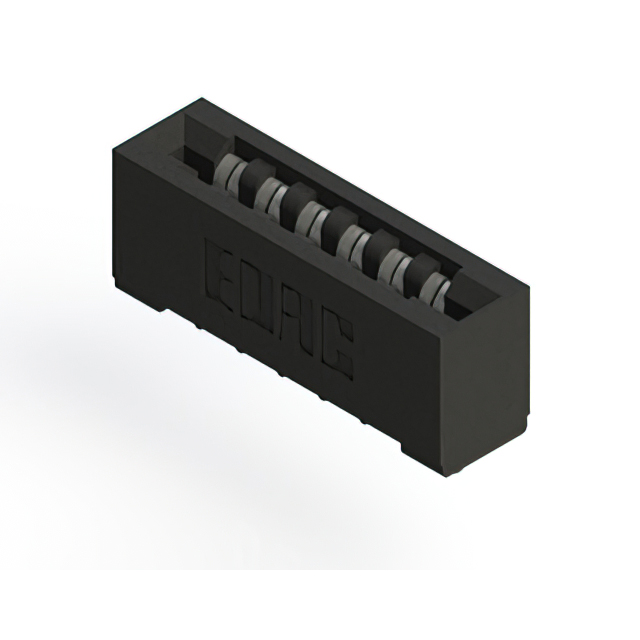

357-006-401-101 EDAC Inc. 357-006-401-101 13.4124
RFQ
 ECAD 1135 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole - 357-006 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-006-401-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 1

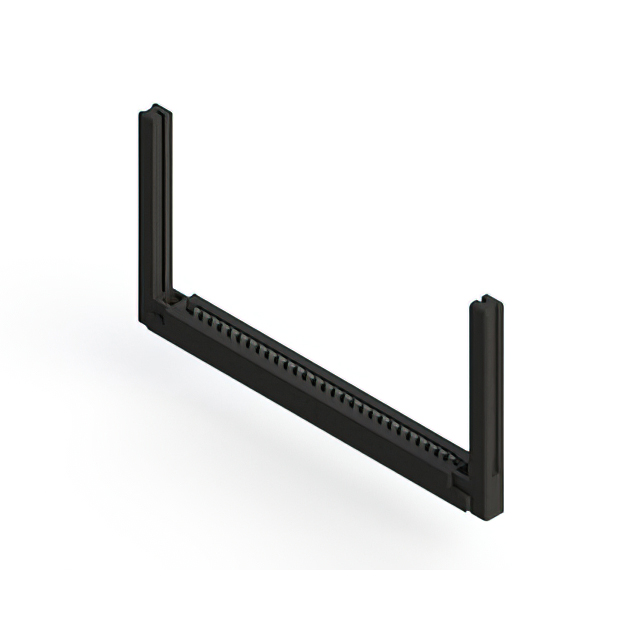

357-028-405-158 EDAC Inc. 357-028-405-158 17.5180
RFQ
 ECAD 4903 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole Card Guides 357-028 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-028-405-158 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 28 Female Non Specified - Single Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

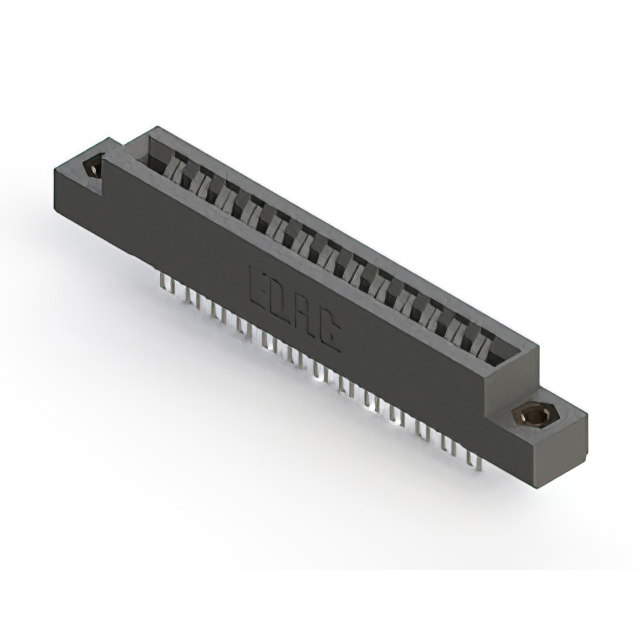

356-013-400-107 EDAC Inc. 356-013-400-107 13.2352
RFQ
 ECAD 6127 0.00000000 EDAC Inc. 356 Bulk Active -40°C ~ 105°C Panel Mount - 356-013 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-356-013-400-107 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 1
737-018-520-106 EDAC Inc. 737-018-520-106 7.1100
RFQ
 ECAD 5497 0.00000000 EDAC Inc. 737 Bulk Active -40°C ~ 105°C Through Hole - 737-018 Black Press-Fit download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-737-018-520-106 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
357-084-458-268 EDAC Inc. 357-084-458-268 22.8824
RFQ
 ECAD 9080 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 357-084 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-084-458-268 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 84 Female Non Specified - Dual Edge 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

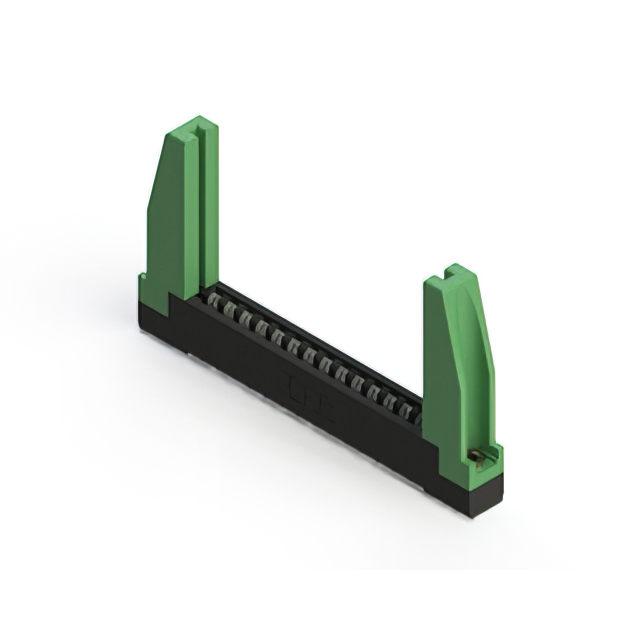

357-015-401-178 EDAC Inc. 357-015-401-178 21.4280
RFQ
 ECAD 6672 0.00000000 EDAC Inc. 357 Bulk Active -40°C ~ 105°C Through Hole Card Guides 357-015 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-357-015-401-178 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 30 Female Non Specified - Dual Edge 15 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

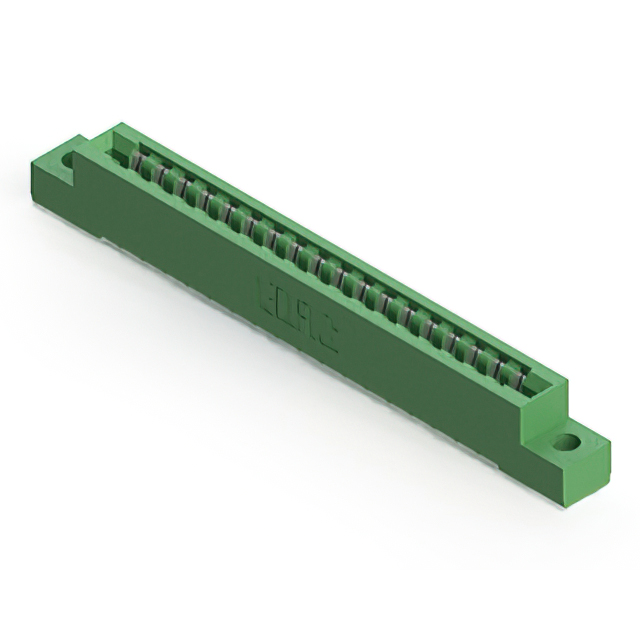

307-018-425-102 EDAC Inc. 307-018-425-102 13.6632
RFQ
 ECAD 9596 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole - 307-018 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-018-425-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
896-049-540-604 EDAC Inc. 896-049-540-604 54.1012
RFQ
 ECAD 7531 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-049 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-049-540-604 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 49 Female Non Specified - Single Edge 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1

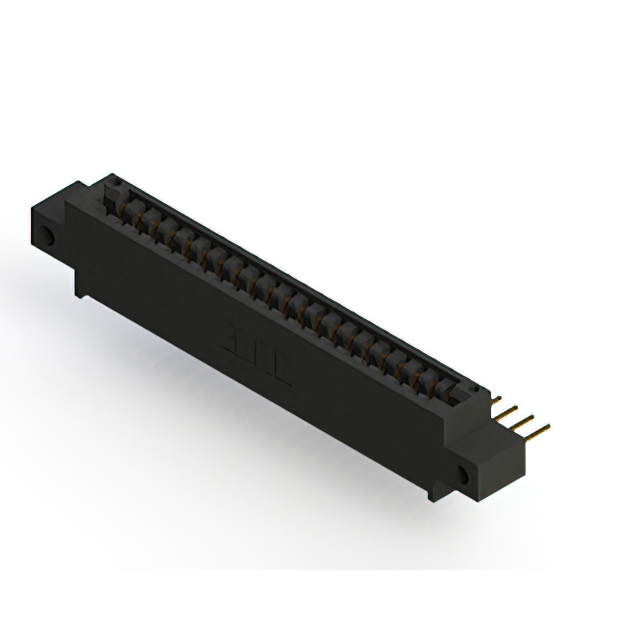

896-021-558-612 EDAC Inc. 896-021-558-612 65.8036
RFQ
 ECAD 5246 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-021 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-021-558-612 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
896-029-500-608 EDAC Inc. 896-029-500-608 95.0984
RFQ
 ECAD 2122 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-029 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-029-500-608 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1
896-080-522-807 EDAC Inc. 896-080-522-807 88.8300
RFQ
 ECAD 6732 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-080 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-080-522-807 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2

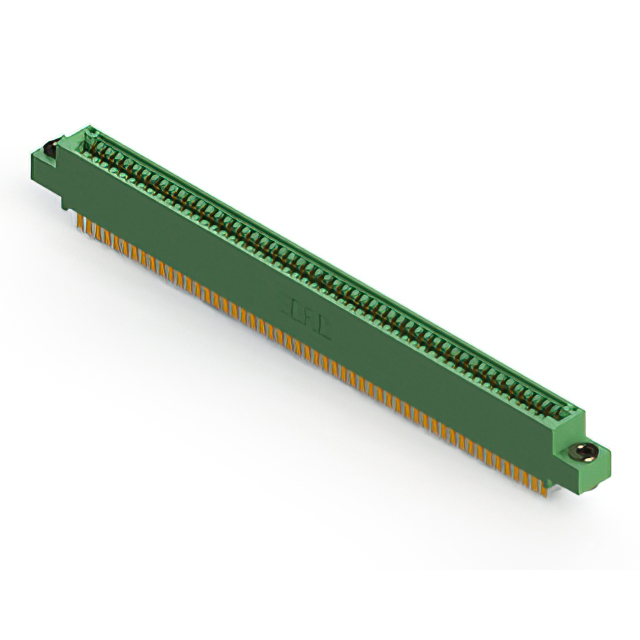

895-104-500-503 EDAC Inc. 895-104-500-503 200.6100
RFQ
 ECAD 4871 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-104 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-104-500-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 104 Female Non Specified - Dual Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
896-072-555-207 EDAC Inc. 896-072-555-207 91.4756
RFQ
 ECAD 2717 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 896-072 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-072-555-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2

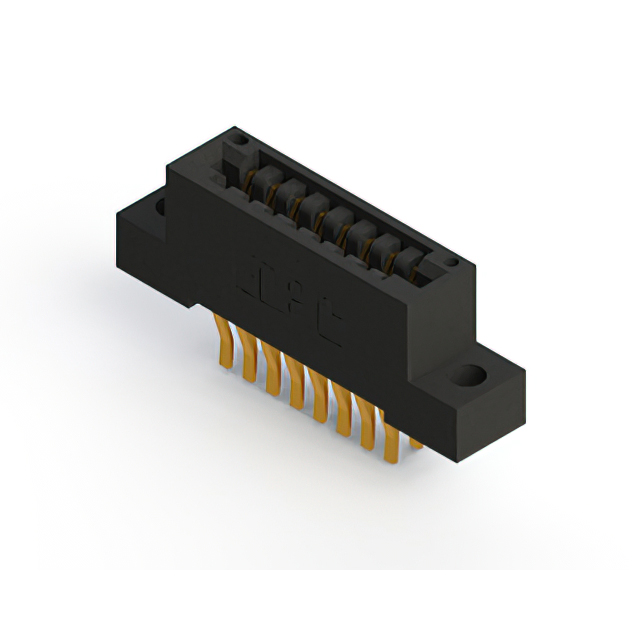

896-016-560-204 EDAC Inc. 896-016-560-204 51.0252
RFQ
 ECAD 3394 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 896-016 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-016-560-204 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2

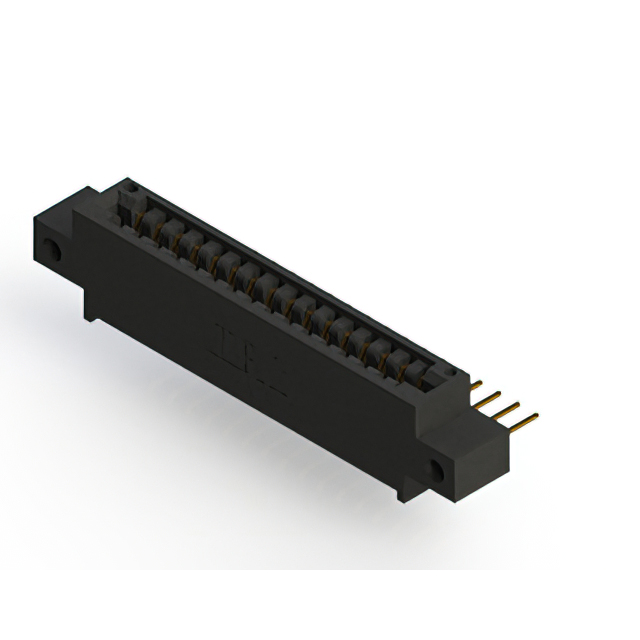

896-016-558-612 EDAC Inc. 896-016-558-612 63.4408
RFQ
 ECAD 5782 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-016 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-016-558-612 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Single Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1

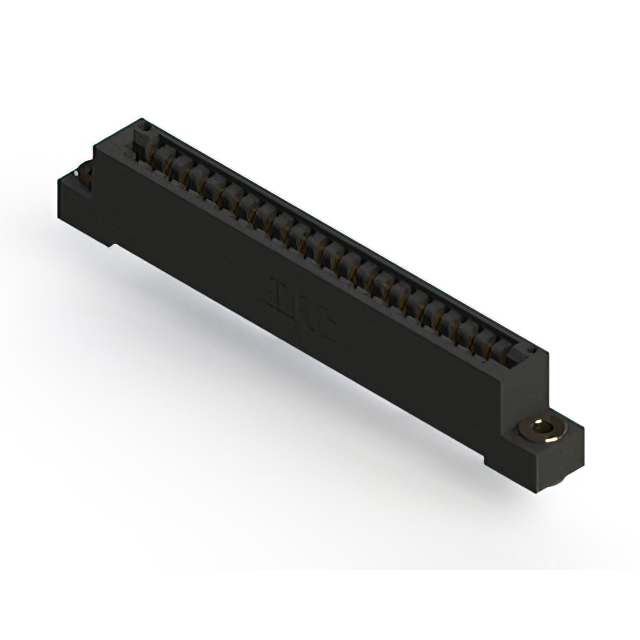

896-022-520-103 EDAC Inc. 896-022-520-103 57.0624
RFQ
 ECAD 2415 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-022 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-022-520-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 1
896-036-558-604 EDAC Inc. 896-036-558-604 63.0788
RFQ
 ECAD 4586 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-036 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-036-558-604 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Single Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1

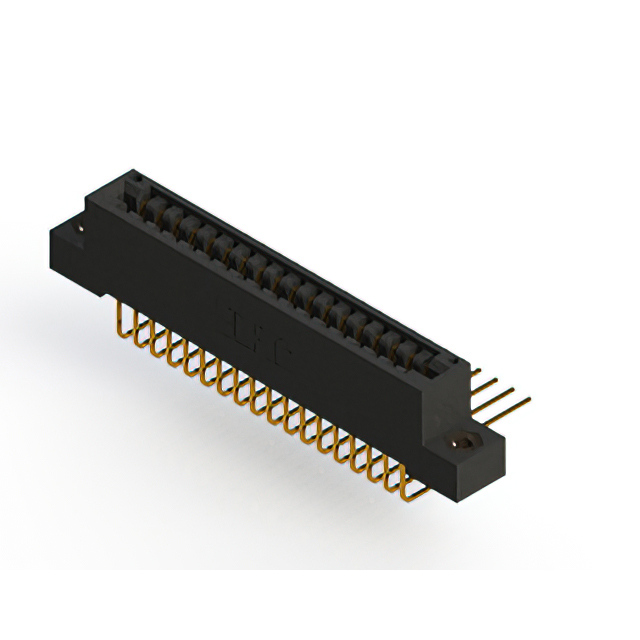

896-036-558-208 EDAC Inc. 896-036-558-208 77.7264
RFQ
 ECAD 3287 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-036 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-036-558-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2

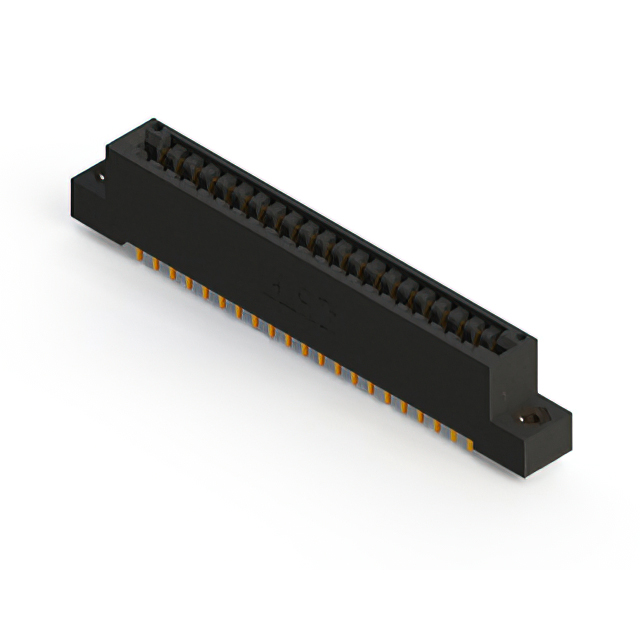

896-042-522-208 EDAC Inc. 896-042-522-208 65.4412
RFQ
 ECAD 1576 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-042 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-042-522-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2

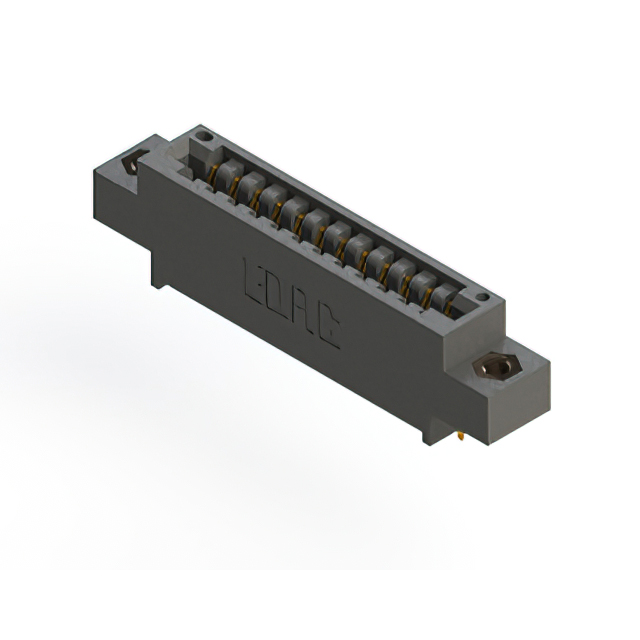

896-012-520-607 EDAC Inc. 896-012-520-607 53.0460
RFQ
 ECAD 9429 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-012 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-012-520-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
896-086-522-804 EDAC Inc. 896-086-522-804 79.8860
RFQ
 ECAD 6145 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-086 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-086-522-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
895-138-541-212 EDAC Inc. 895-138-541-212 118.2912
RFQ
 ECAD 4093 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-138 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-138-541-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 138 Female Non Specified - Dual Edge 69 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
896-024-522-802 EDAC Inc. 896-024-522-802 38.9808
RFQ
 ECAD 9297 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-024 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-024-522-802 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Dual Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
896-086-526-208 EDAC Inc. 896-086-526-208 94.9904
RFQ
 ECAD 9052 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-086 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-086-526-208 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
896-029-526-103 EDAC Inc. 896-029-526-103 58.0700
RFQ
 ECAD 3321 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-029 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-029-526-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 1
896-060-558-804 EDAC Inc. 896-060-558-804 71.0232
RFQ
 ECAD 3557 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-060 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-060-558-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 2
