Backplane Connectors(299)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Accessory Type | Color | For Use With/Related Products | Termination | Note | Specifications | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Number of Positions Loaded | Voltage Rating | Connector Style | Connector Usage | Number of Columns | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LMS-B1-01 | 17.7997 |  |
2617 | 0.00000000 | Amphenol Aerospace Operations | LMS | Bulk | Active | LMS-B1 | Mounting Bracket | LMS Module | 2 Pieces | download | ROHS3 Compliant | 1 (Unlimited) | LMSB101 | EAR99 | 8538.90.8180 | 1 | |||||||||||||||||||||
 |
LMD-06RK7 | 1.0000 | |
2456 | 0.00000000 | Amphenol Aerospace Operations | LMD | Bulk | Active | - | Jackscrew | LMD-06 | Black | Contacts Not Included | download | ROHS3 Compliant | 1 (Unlimited) | EAR99 | 8536.69.4020 | 1 | Housing for Female Sockets | - | - | - | Rack and Panel | Receptacle | |||||||||||||||
 |
RVPX-JE216EM1 | 57.2100 | |
39 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | - | Through Hole | - | RVPX-JE | - | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | 1178-RVPX-JE216EM1 | EAR99 | 8536.69.4040 | 45 | Receptacle, Female Blade Sockets | - | 1 | Gold | 50.0µin (1.27µm) | 1.5A | - | 16 | All | - | VITA 46, Right End | Backplane | 16 | - | |||||
 |
RVPX-HMD-8 | 19.4900 | |
40 | 0.00000000 | Amphenol Aerospace Operations | RVPX | Tray | Active | RVPX-HMD | Guide Module | RVPX Series | ESD Contact | download | RoHS Compliant | 1 (Unlimited) | 1178-RVPX-HMD-8 | EAR99 | 8538.90.8180 | 45 | |||||||||||||||||||||
|
RVPX-JE216EM2 | 60.2300 | |
42 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | - | Through Hole | - | RVPX-JE | - | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | 1178-RVPX-JE216EM2 | EAR99 | 8536.69.4040 | 45 | Receptacle, Female Blade Sockets | - | 1 | Gold | 50.0µin (1.27µm) | 1.5A | - | 16 | All | - | VITA 46, Right End | Backplane | 16 | - | |||||
 |
RVPX-PE216DM2 | 156.5400 | |
1 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | - | Through Hole, Right Angle | Board Guide | RVPX-PE | - | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | 1178-RVPX-PE216DM2 | EAR99 | 8536.69.4040 | 45 | Plug, Male Blades | 0.071" (1.80mm) | 7 | Gold | 50.0µin (1.27µm) | 1.5A | - | 112 | All | - | VITA 46, Center | Daughtercard | 16 | - | |||||
 |
RVPX-PE16DM1 | 129.0000 | |
41 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | - | Through Hole, Right Angle | Board Guide | RVPX-PE | - | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 45 | Plug, Male Blades | 0.071" (1.80mm) | 7 | Gold | 50.0µin (1.27µm) | 1.5A | - | 112 | All | - | VITA 46, Center | Daughtercard | 16 | - | ||||||
 |
RVPX-HMD-2 | 15.9700 | |
3214 | 0.00000000 | Amphenol Aerospace Operations | RVPX | Tray | Active | RVPX-HMD | Guide Module | RVPX Series | ESD Contact | download | RoHS Compliant | 1 (Unlimited) | 1178-RVPX-HMD-2 | EAR99 | 7907.00.6000 | 50 | |||||||||||||||||||||
 |
10-504639-006 | 547.5500 | |
10 | 0.00000000 | Amphenol Aerospace Operations | - | Bag | Active | -55°C ~ 125°C | Panel Mount | - | 10-504639 | - | Wire Wrap | download | RoHS non-compliant | 1 (Unlimited) | 1178-10-504639-006 | EAR99 | 8536.69.4030 | 1 | - | - | 3 | - | - | - | - | 4 | All | - | VITA 66.4 | Backplane | 2 | - | |||||
 |
10-504639-002 | 360.3900 | |
10 | 0.00000000 | Amphenol Aerospace Operations | - | Bag | Active | -55°C ~ 125°C | Panel Mount | - | 10-504639 | - | Wire Wrap | download | RoHS non-compliant | 1 (Unlimited) | 1178-10-504639-002 | EAR99 | 8536.69.4030 | 1 | - | - | 2 | - | - | - | - | 6 | All | - | VITA 66.1 | Backplane | 4 | - | |||||
 |
10-504637-010 | 679.2500 | |
11 | 0.00000000 | Amphenol Aerospace Operations | - | Bag | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Board Guide | 10-504637 | - | Wire Wrap | download | RoHS non-compliant | 1 (Unlimited) | 1178-10-504637-010 | EAR99 | 8536.69.8000 | 1 | Module | - | 2 | - | - | - | - | 8 | All | - | VITA 66.1 | Backplane | 4 | - | |||||
 |
HDB-D4-120M026X | 216.9500 | |
9 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole, Right Angle | Jackscrew | HDB-D4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-D4-120M026X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 12 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 120 | All | - | High Density (HDC, HDI, HPC) | Daughtercard | 10 | - | |||||
|
HDB-M4-120M226X | 206.6800 | |
9 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-M4-120M226X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 12 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 120 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
 |
HDB-D4-120M042X | 295.3300 | |
10 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole, Right Angle | Jackscrew | HDB-D4 | Black | Solder | download | RoHS Compliant | Not Applicable | 1178-HDB-D4-120M042X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 12 | Gold | 30.0µin (0.76µm) | 2A | - | 120 | All | - | High Density (HDC, HDI, HPC) | Daughtercard | 10 | - | |||||
|
HDB-M4-120M232X | 434.4000 | |
2 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS Compliant | Not Applicable | 1178-HDB-M4-120M232X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 12 | Gold | 30.0µin (0.76µm) | 2A | - | 120 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
 |
HDB-508803-003 | 35.5600 | |
30 | 0.00000000 | Amphenol Aerospace Operations | * | Bag | Active | 508803 | Polarizing Key | HDB Series | - | download | RoHS Compliant | Not Applicable | 1178-HDB-508803-003 | EAR99 | 8538.90.8180 | 1 | |||||||||||||||||||||
 |
HDB-D4-080M036X | 152.6200 | |
2043 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole, Right Angle | Jackscrew | HDB-D4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-D4-080M036X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 8 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 80 | All | - | High Density (HDC, HDI, HPC) | Daughtercard | 10 | - | |||||
|
HDB-M4-080M226X | 155.9200 | |
10 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-M4-080M226X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 8 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 80 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
 |
HDB-M4-060M242X | 158.3900 | |
10 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS Compliant | Not Applicable | 1178-HDB-M4-060M242X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 6 | Gold | 30.0µin (0.76µm) | 2A | - | 60 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
|
HDB-M4-120M246X | 206.6600 | |
20 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-M4-120M246X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 12 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 120 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
 |
HDB-508802-002 | 40.8600 | |
23 | 0.00000000 | Amphenol Aerospace Operations | * | Bag | Active | 508802 | Guide Pin | HDB Series | - | download | RoHS Compliant | Not Applicable | 1178-HDB-508802-002 | EAR99 | 8538.90.8180 | 1 | |||||||||||||||||||||
|
HDB-M4-060M246X | 122.3500 | |
10 | 0.00000000 | Amphenol Aerospace Operations | HBD | Bag | Active | -65°C ~ 125°C | Through Hole | Jackscrew | HDB-M4 | Black | Solder | download | RoHS non-compliant | Not Applicable | 1178-HDB-M4-060M246X | EAR99 | 8536.69.4040 | 1 | Receptacle, Female Sockets | 0.070" (1.78mm) | 6 | Tin-Lead | 100.0µin (2.54µm) | 2A | - | 60 | All | - | High Density (HDC, HDI, HPC) | Backplane, Motherboard | 10 | - | |||||
|
RVPX-JE216MC1 | 58.8600 | |
1275 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole | - | - | Press-Fit | download | ROHS3 Compliant | Not Applicable | 1178-RVPX-JE216MC1 | 45 | Receptacle, Female Blade Sockets | 0.071" (1.80mm) | 9 | Gold | 30.0µin (0.76µm) | 1.5A | - | 144 | All | - | VITA 46, Center | Backplane | 16 | - | ||||||||
|
RVPX-PE216DC1 | 168.5200 | |
5409 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole, Right Angle | Board Guide | - | Solder | download | ROHS3 Compliant | Not Applicable | 1178-RVPX-PE216DC1 | 45 | Plug, Male Blades | 0.071" (1.80mm) | 7 | Gold | 30.0µin (0.76µm) | 1.5A | UL94 V-0 | 112 | All | - | VITA 46, Center | Daughtercard | 16 | - | ||||||||
 |
RVPX-J16EC1 | 38.4500 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole | Board Guide | - | Press-Fit | download | ROHS3 Compliant | Not Applicable | 1178-RVPX-J16EC1 | 45 | Receptacle, Female Blade Sockets | 0.071" (1.80mm) | 9 | Gold | 30.0µin (0.76µm) | 1.5A | UL94 V-0 | 144 | All | - | VITA 46, Right End | Backplane | 16 | - | ||||||||
 |

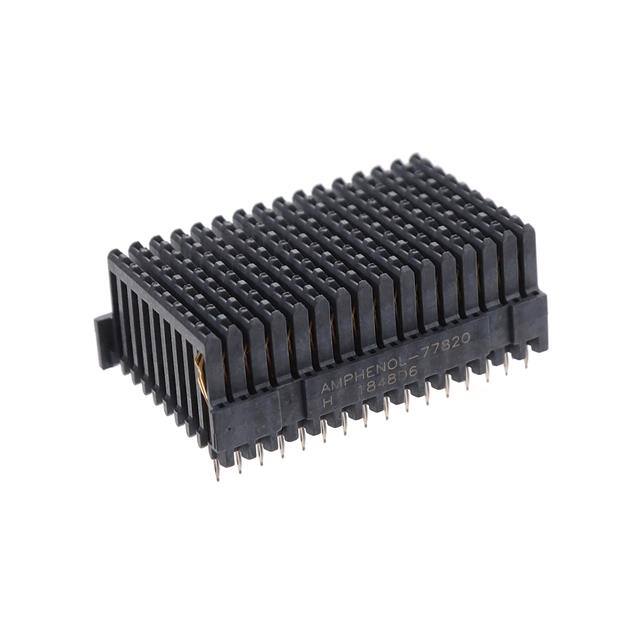

RVPX-RJ1216MM2 | 33.6000 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole | - | - | Press-Fit | download | RoHS non-compliant | Not Applicable | 1178-RVPX-RJ1216MM2 | 45 | Receptacle, Female Blade Sockets | 0.071" (1.80mm) | 9 | Gold | 50.0µin (1.27µm) | 1.5A | - | 144 | All | - | VITA 46, Center | Backplane | 16 | - | ||||||||
 |
RVPX-JE208EM2 | 38.8800 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole | Board Guide | - | Press-Fit | download | RoHS non-compliant | Not Applicable | 1178-RVPX-JE208EM2 | 45 | Receptacle, Female Blade Sockets | 0.071" (1.80mm) | 9 | Gold | 50.0µin (1.27µm) | 1.5A | UL94 V-0 | 72 | All | - | VITA 46 | Backplane | 8 | - | ||||||||
 |
RVPX-J16MC1 | 31.2600 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole | Board Guide | - | Press-Fit | download | ROHS3 Compliant | Not Applicable | 1178-RVPX-J16MC1 | 45 | Receptacle, Female Blade Sockets | 0.071" (1.80mm) | 9 | Gold | 30.0µin (0.76µm) | 1.5A | UL94 V-0 | 144 | All | - | VITA 46, Right End | Backplane | 16 | - | ||||||||
 |
RVPX-JE208MM2 | 38.8800 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | - | - | - | - | download | RoHS non-compliant | Not Applicable | 1178-RVPX-JE208MM2 | 45 | - | - | - | Gold | 50.0µin (1.27µm) | 1.5A | - | 8 | All | - | VITA 46 | Backplane | - | - | ||||||||
 |
RVPX-P08VC2 | 54.9100 | |
45 | 0.00000000 | Amphenol Aerospace Operations | R-VPX Evolution | Tray | Active | -55°C ~ 105°C | Through Hole, Right Angle | Board Guide | - | Solder | download | RoHS non-compliant | Not Applicable | 1178-RVPX-P08VC2 | 45 | Plug, Male Blades | 0.071" (1.80mm) | 7 | Gold | 30.0µin (0.76µm) | 1.5A | UL94 V-0 | 56 | All | - | VITA 46, Half, Left End | Daughtercard | 8 | - |
