Backplane Connectors(20116)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Style | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Pitch | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Number of Positions Loaded | Voltage Rating | Material - Insulation | Connector Style | Connector Usage | Number of Columns | Contact Layout, Typical | Level, Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HM2P07PDF2Y1N9 | - |  |
5404 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Obsolete | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | - | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1,152 | Header, Male Pins | 0.079" (2.00mm) | 5 | Gold | 30.0µin (0.76µm) | 1.5 A | 110 | All | 750Vrms | A 22 | - | |||||||||||
|
51939-822LF | 7.2583 | |
4169 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade® | Tray | Active | -20°C ~ 105°C | Board Edge, Through Hole, Right Angle | Mating Guide | 51939 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 33 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 31 | All | - | Blade Power | - | - | 24 Signal, 7 Power | |||||
|
HM2P07PNW2Y4GF | - | |
1079 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Obsolete | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | download | 1 (Unlimited) | EAR99 | 8536.69.4040 | 192 | Header, Male Pins | 0.079" (2.00mm) | 5 + 2 | Gold | 30.0µin (0.76µm) | 1.5 A | 154 (110 + 44 Ground) | All | 750Vrms | A 22 | - | |||||||||||
|
10091836-W0J-60DLF | - | |
8907 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Bulk | Active | - | Through Hole | - | 10091836 | Gray | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 304 | Header, Male Blades | - | - | Gold | - | - | UL94 V-0 | - | All | - | High Speed | Backplane | 4 | 24 Differential Pairs | ||||||
 |
10028917-001LF | 11.2600 | |
872 | 0.00000000 | Amphenol ICC (FCI) | Airmax® | Bulk | Active | - | Board Edge, Through Hole, Right Angle | Board Guide | 10028917 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 50 | Header, Male Blades | - | 2 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 4 | All | - | Blade Power | Daughtercard | - | 4 Power | |||||
|
HM1Y295A13 | - | |
3971 | 0.00000000 | Amphenol ICC (FCI) | - | Bulk | Active | - | - | - | HM1Y | - | - | - | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||
|
10120130-E0J-80DLF | - | |
4390 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Bulk | Active | - | Through Hole | Key | 10120130 | Black | Press-Fit | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 152 | Header, Male Pins and Blades | - | - | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | - | All | - | XCede®, Guide Left | Backplane | 4 | 24 Signal Pairs, 26 Ground | ||||||
|
HM2P07PDT130N9 | - | |
4401 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Obsolete | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 48 | Header, Male Pins | 0.079" (2.00mm) | 5 | Gold | Flash | 1.5 A | 110 | All | 750Vrms | A 22 | - | |||||||||
|
51915-504LF | 8.2484 | |
2759 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade® | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Guide Pin | 51915 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | 33 | Receptacle, Female Sockets | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | 70A | UL94 V-0 | 100 | All | - | Blade Power | - | 25 | - | |||||||
|
HM2R10PA5108N9CLF | 5.8014 | |
6351 | 0.00000000 | Amphenol ICC (FCI) | - | Tray | Active | - | - | - | HM2R10 | - | - | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 36 | - | - | - | - | - | - | - | - | - | - | |||||||||||
|
50006-XX010 | - | |
3944 | 0.00000000 | Amphenol ICC (FCI) | HPC™ | Bulk | Obsolete | - | Through Hole | Mating Guide | 50006 | Black | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 36 | Header, Male Pins | 0.100" (2.54mm) | 3 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 150 | All | - | High Density (HDC, HDI, HPC) | Daughtercard | 50 | - | ||||||
 |

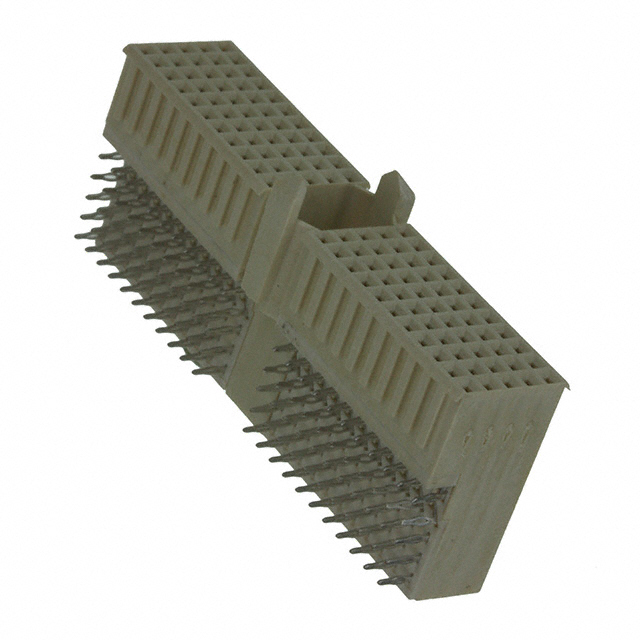

HM2R10PA5100N9LF | 4.8200 | |
174 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | - | HM2R10 | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | 609-2143 | EAR99 | 8536.69.4040 | 36 | Receptacle, Female Sockets | 0.079" (2.00mm) | 5 | Gold | 30.0µin (0.76µm) | 1.5 A | 110 | All | 750Vrms | A 22 | - | ||||||||
|
10119128-R0C-70DLF | - | |
6306 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Bulk | Active | - | Through Hole | Key | 10119128 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 128 | Header, Male Pins and Blades | - | - | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | - | All | - | XCede®, Guide Right | Backplane | 6 | 18 Signal Pairs, 21 Ground | ||||||
|
HM2P67PN5119GFLF | 4.9019 | |
1622 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Active | -55°C ~ 125°C | Through Hole | - | HM2P67 | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 32 | Header, Male Pins | 0.079" (2.00mm) | 5 + 2 | Gold | Flash | 1.5 A | 127 (95 + 32 Ground) | All | 750Vrms | AB 19 | - | ||||||||||
|
HM2P07PDT221N9LF | 3.2206 | |
2001 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Active | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 48 | Header, Male Pins | 0.079" (2.00mm) | 5 + 2 | Gold | Flash | 1.5 A | 154 (110 + 44 Ground) | All | 750Vrms | A 22 | - | |||||||||
|
HM2P07PD5110Z1LF | - | |
4402 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Active | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | - | 1 (Unlimited) | 609-HM2P07PD5110Z1LF | EAR99 | 8536.69.4040 | 48 | Header, Male Pins | 0.079" (2.00mm) | 5 | Gold | - | 1.5 A | 110 | All | 750Vrms | A 22 | - | ||||||||||
|
10091777-P0E-20DLF | - | |
2271 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Tray | Active | -55°C ~ 85°C | Through Hole | Key | 10091777 | Gray | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 96 | Header, Male Pins and Blades | - | - | Gold | 15.0µin (0.38µm) | - | UL94 V-0 | - | All | - | XCede®, Guide Right | Backplane | 8 | 48 Differential Pairs | |||||
|
85965-202LF | - | |
3294 | 0.00000000 | Amphenol ICC (FCI) | - | Tube | Obsolete | download | 1 (Unlimited) | 609-85965-202LF | OBSOLETE | 1 | |||||||||||||||||||||||||||
|
50003-1048E | - | |
6823 | 0.00000000 | Amphenol ICC (FCI) | HPC™ | Tube | Obsolete | - | Through Hole, Right Angle | Mating Guide | 50003 | - | Solder | download | RoHS non-compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 0.100" (2.54mm) | 4 | Gold | 30.0µin (0.76µm) | - | - | 48 | All | - | High Density (HDC, HDI, HPC) | - | 12 | - | ||||||
|
10106262-4002001LF | 6.7728 | |
7303 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade+® | Tray | Active | -40°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mating Guide | 10106262 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 44 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 12 | 8 | - | Blade Power | - | - | 8 Signal, 4 Power | |||||
|
51940-461LF | 13.7135 | |
3563 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade® | Tray | Active | -20°C ~ 105°C | Through Hole | - | 51940 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 6 | Receptacle, Female Sockets and Blade Sockets | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 47 | All | - | Blade Power | - | - | 24 Signal, 23 Power | |||||
|
10113947-C0C-60DLF | - | |
5033 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Bulk | Active | -55°C ~ 85°C | Through Hole | Key | 10113947 | Gray | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 480 | Header, Male Pins and Blades | - | - | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | - | All | - | XCede®, Guide Left | Backplane | 6 | 18 Differential Pairs | ||||||
|
51721-10006402ABLF | 8.4833 | |
5464 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade® | Tray | Active | -20°C ~ 105°C | Board Edge, Through Hole, Right Angle | Mating Guide | 51721 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 33 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 66 | All | - | Blade Power | - | - | 64 Signal, 2 Power | ||||||
|
86092645113765ELF | 2.7202 | |
5239 | 0.00000000 | Amphenol ICC (FCI) | 8609 | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 86092645113 | Solder | B | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 16 | Header, Male Pins | 0.100" (2.54mm) | 2 | Gold | - | 1.5A | UL94 V-0 | 64 | All | Polyester Thermoplastic, Glass Filled | 1 | ||||||||
|
HM2P65PKR3R5GFLF | 6.9163 | |
9601 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Active | -55°C ~ 125°C | Through Hole | - | HM2P65 | Press-Fit | - | 1 (Unlimited) | 609-HM2P65PKR3R5GFLF | 32 | Header, Male Pins | 0.079" (2.00mm) | - | Gold | - | 1.5 A | - | - | - | - | Backplane | ||||||||||||
|
HM2P07PDM2F5N9 | - | |
3628 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Obsolete | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 48 | Header, Male Pins | 0.079" (2.00mm) | 5 + 1 | Gold | Flash | 1.5 A | 132 (110 + 22 Ground) | All | 750Vrms | A 22 | - | |||||||||
|
51701-10000804AALF | 4.5732 | |
8910 | 0.00000000 | Amphenol ICC (FCI) | PwrBlade® | Tray | Active | -20°C ~ 105°C | Through Hole | Board Lock, Mating Guide | 51701 | Black | Solder | download | RoHS Compliant | 1 (Unlimited) | REACH Affected | EAR99 | 8536.69.4040 | 55 | Header, Male Pins and Blades | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | 12 | All | - | Blade Power | - | - | 8 Signal, 4 Power | |||||
|
50004-5360ELF | - | |
3854 | 0.00000000 | Amphenol ICC (FCI) | HPC™ | Tube | Obsolete | - | Through Hole, Right Angle | Mating Guide | 50004 | - | Solder | download | 1 (Unlimited) | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 0.100" (2.54mm) | 4 | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | - | 360 | All | - | High Density (HDC, HDI, HPC) | - | 90 | - | |||||||
|
HM2P07PNJ1U4GF | - | |
9696 | 0.00000000 | Amphenol ICC (FCI) | Millipacs® | Tray | Obsolete | -55°C ~ 125°C | Through Hole | Board Guide | HM2P07 | Press-Fit | download | RoHS non-compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 192 | Header, Male Pins | 0.079" (2.00mm) | 5 + 2 | Gold | 30.0µin (0.76µm) | 1.5 A | 154 (110 + 44 Ground) | All | 750Vrms | A 22 | - | |||||||||
|
10120132-J0E-20DLF | - | |
8227 | 0.00000000 | Amphenol ICC (FCI) | XCede® | Bulk | Active | - | Through Hole | Key | 10120132 | Black | Press-Fit | download | RoHS Compliant | 1 (Unlimited) | EAR99 | 8536.69.4040 | 96 | Header, Male Pins and Blades | - | - | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | UL94 V-0 | - | All | - | XCede®, Guide Left | Backplane | 8 | 48 Signal Pairs, 52 Ground |
